Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

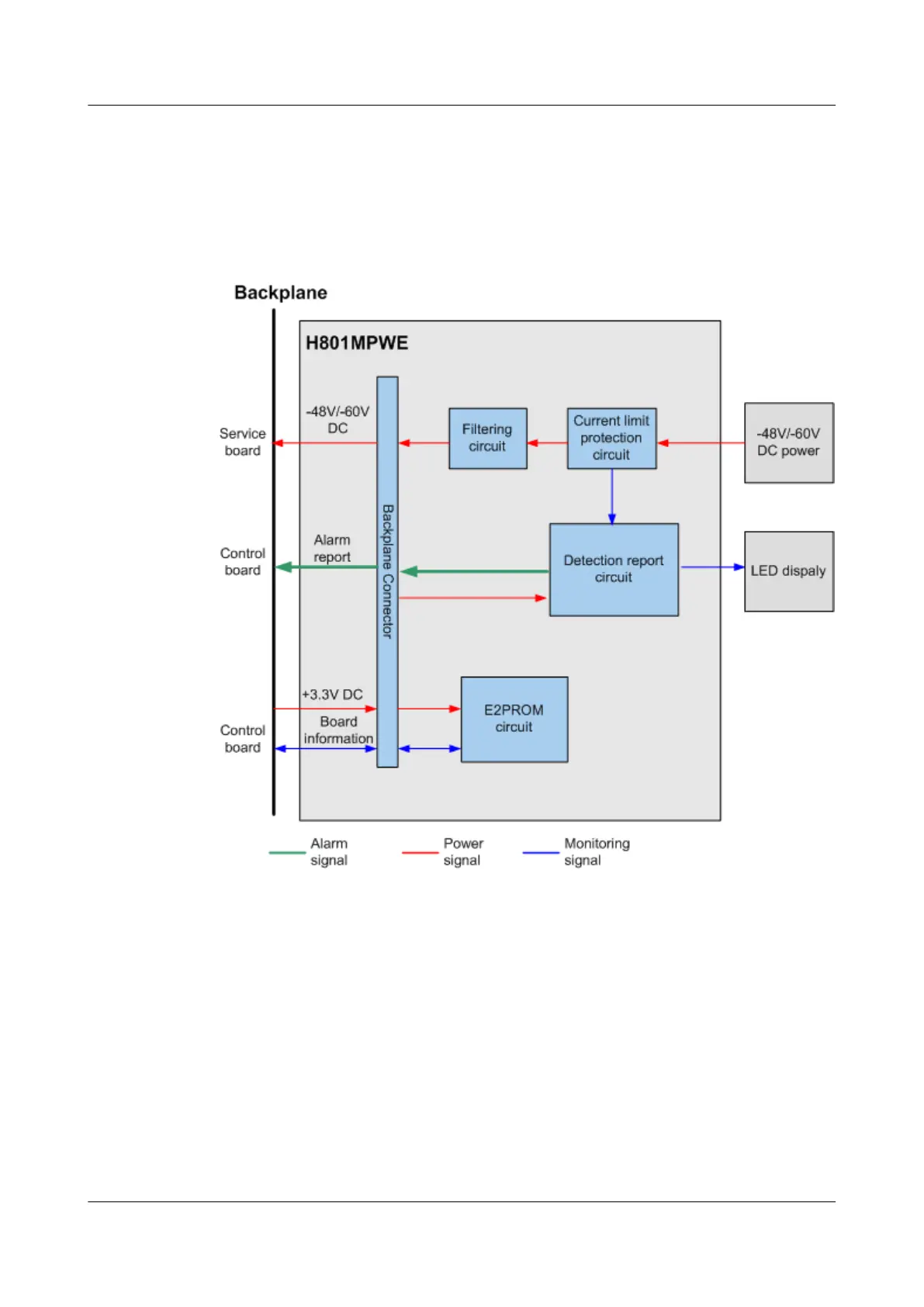

Figure 3-49 Working principle of the H801MPWE board
The basic working principle of the H801MPWE board is as follows:
l The H801MPWE board leads in one -48 V or -60 V power input through one 3V3 power
connector, and transfers the power to the current limit protection circuit, then to the filter
circuit, and finally to the backplane, supplying power to the subrack and other boards.
l The detection and reporting circuit checks the protection fuse for any faults, and reports
the detection signals to the control board. The control board indicates these detection
signals through indicators.
l The detection and reporting circuit checks for availability of power supply.
l The E2PROM circuit stores the board manufacture information.
l The H801MPWE board leads in the 3.3 V power from the backplane to power certain
internal chips of the board.
