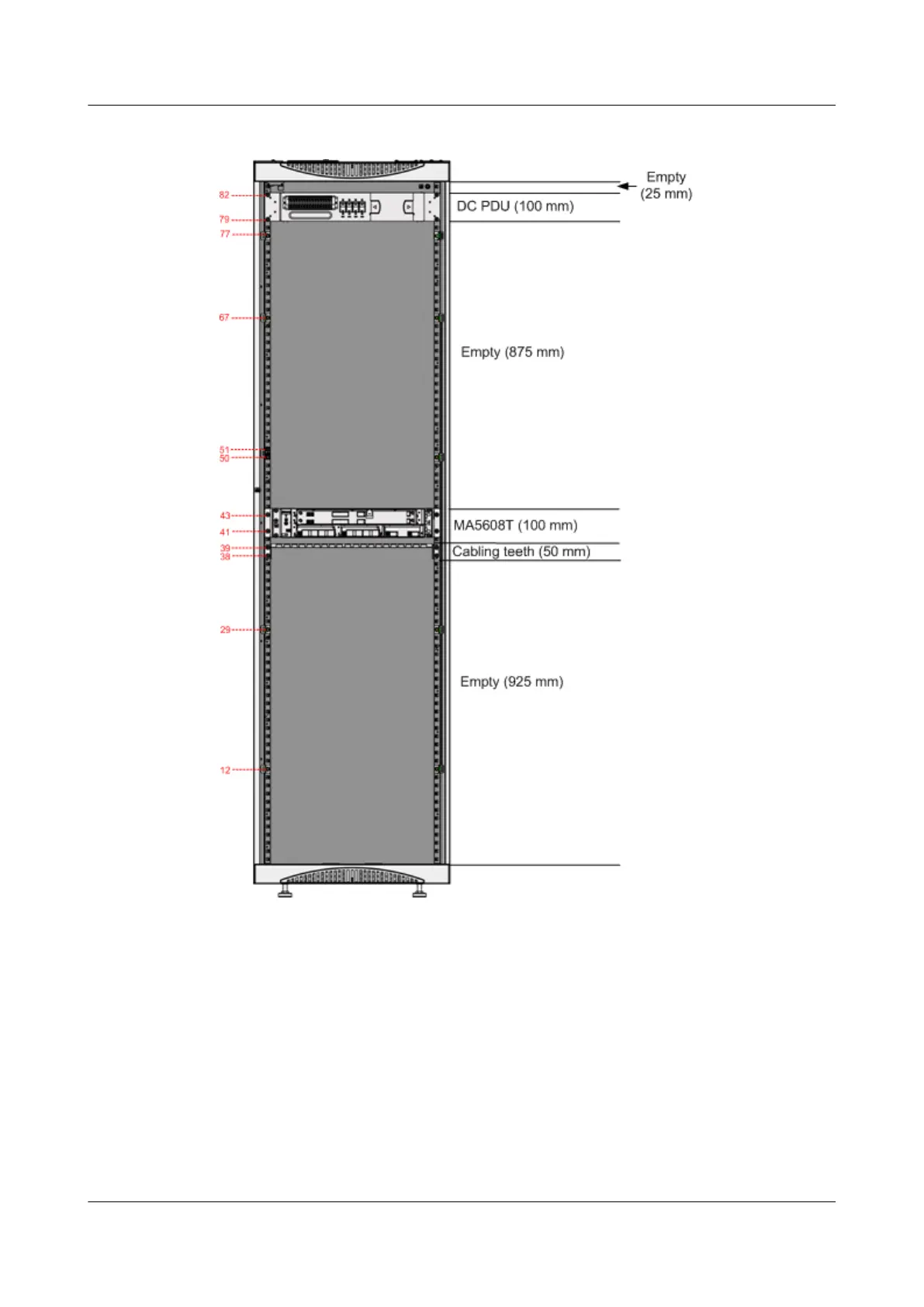

Figure 1-7 Configuration of the N63E-22 cabinet installed with one MA5608T
Configuration of Two MA5608T
Figure 1-8 shows the configuration of the N63E-22 cabinet installed with two MA5608T.
