Huawei SmartAX MA5608T Hardware Description

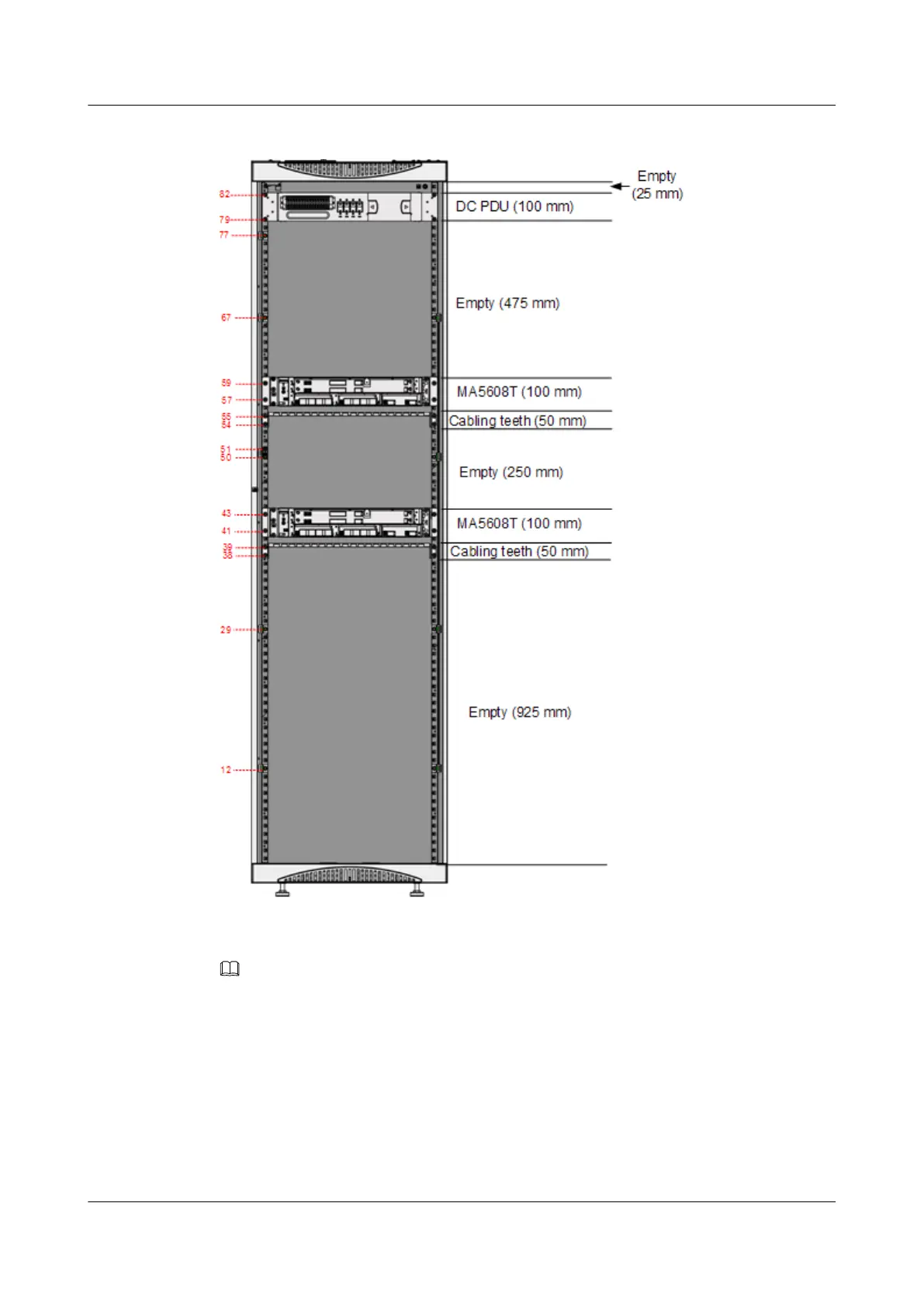

Figure 1-8 Configuration of the N63E-22 cabinet installed with two MA5608T
NOTE
l In Figure 1-8 and Figure 1-8, the filled holes are for floating nuts to fasten subracks.
l For the I-type or C3-type PDU, use installation holes 79 and 82; for the B-type PDU, use installation
holes 79 and 81.
l The cabinet can also support an additional service subrack. In this case, it is recommended that the
air deflector (if not configured) be configured.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
