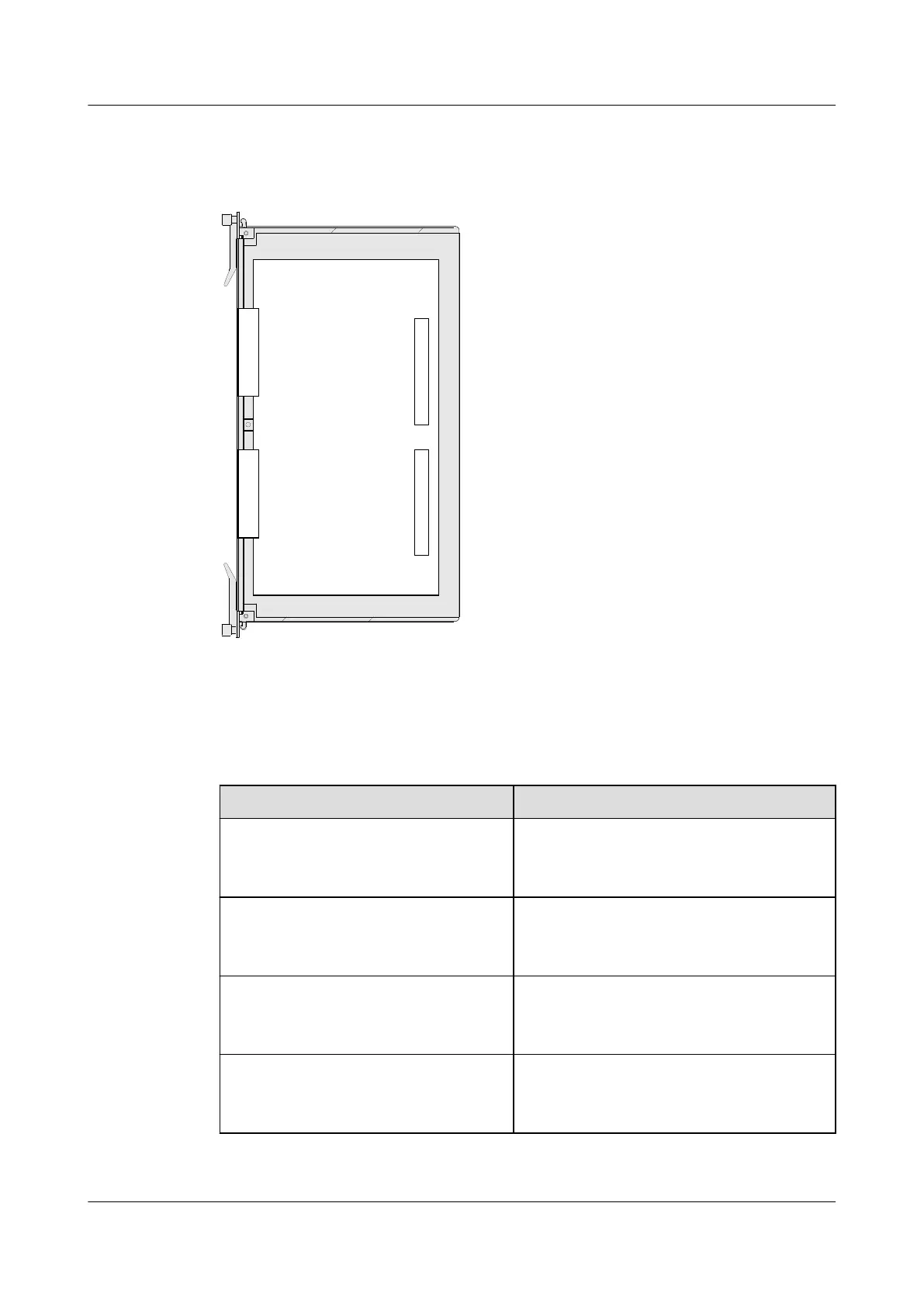

Figure 3-62 Position of the daughter board (O2CE and CSSA) on the H801TOPA board
Daughter board
Table 3-35 describes the daughter board supported by the H801TOPA board.
Table 3-35 Daughter board supported by the H801TOPA board
Daughter board
Function
NH1A
l Transmits TDM signals upstream through
the E1 port.
l Implements the Native TDM function
EH1A
l Transmits TDM signals upstream through
the E1 port.
l Implements the CESoP function.
O2CE
l Transmits TDM signals upstream through
the STM-1 port.
l Implements the Native TDM function
CSSA
l Transmits TDM signals upstream through
the STM-1 port.
l Implements the CESoP function.
