Huawei SmartAX MA5608T Hardware Description

Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board is starting up
Orange Blinking A high-temperature alarm
is generated
Red On The board is faulty
LINK Link status
indicator
Green On The connection is
successful
- Off The connection fails
ACT Data status
indicator
Yellow Blinking Data is being transmitted
- Off No data is being
transmitted
Daughter Board
The H801OPFA board is installed with one LEDA daughter board to control the LEDs on the
front panel. Figure 3-76 shows the position of the daughter board on the H801OPFA board.

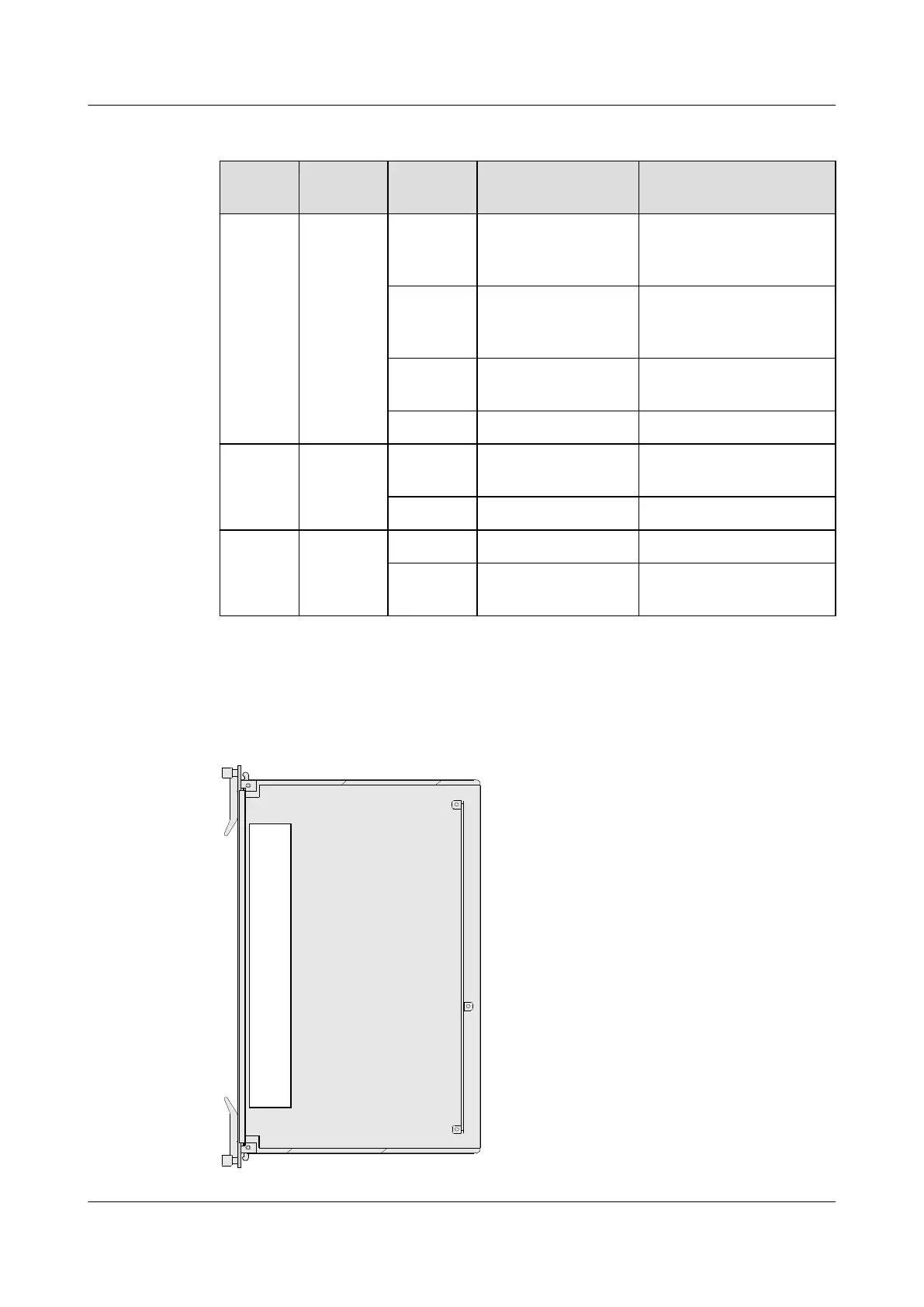

Figure 3-76 Position of the daughter board on the H801OPFA board
D
a
u
g
h
t
e
r
b
o
a
r
d
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
407

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
