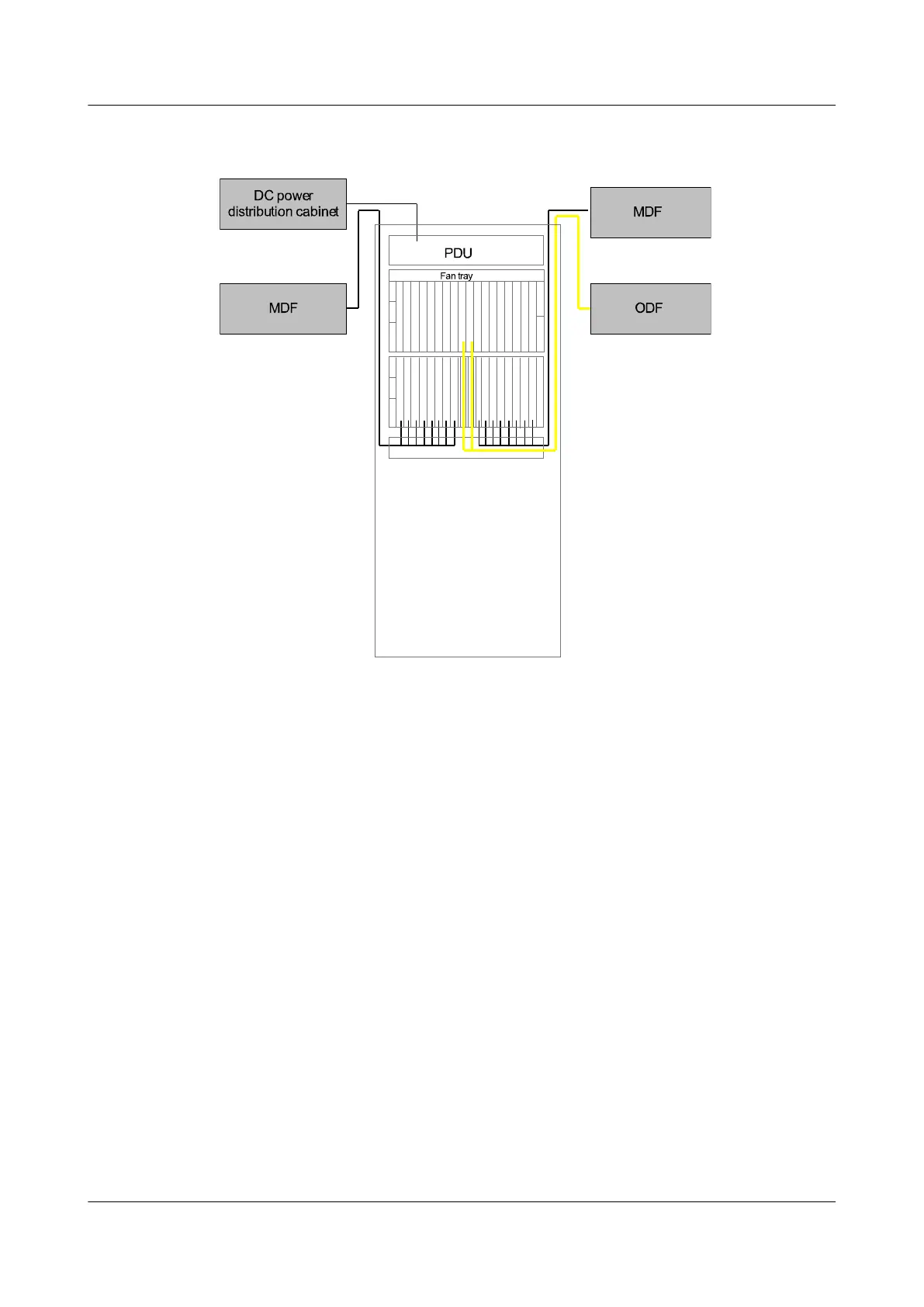

Figure 1-21 External connections of the cabinet installed with one service subrack and one
SPL subrack (overhead cabling)
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
