Huawei SmartAX MA5608T Hardware Description

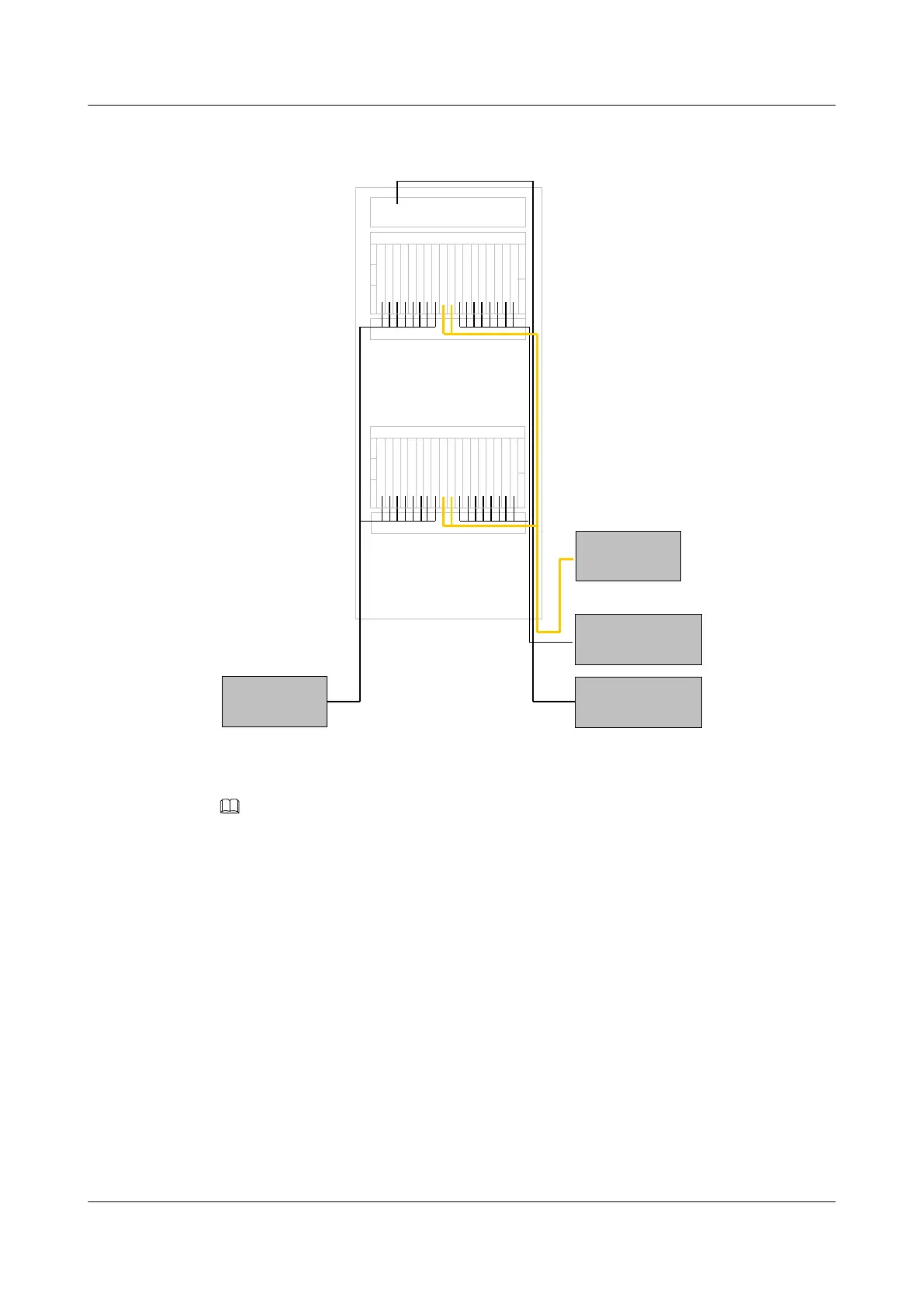

Figure 1-20 External connections of the cabinet installed with two service subracks
(underfloor cabling)
PDU
MDF
Fan tray
Fan tray
MDF
ODF
DC power
distribution cabinet
NOTE
l The GIU slot can be installed with the upstream optical interface board to provide upstream
transmission or cascading over optical fibers. The upstream optical interface board is connected to
the ODF through optical fibers.
l The GIU slot can be installed with the upstream electrical interface board to provide upstream
transmission or cascading over the electrical port. The upstream electrical interface board is
connected to the GE port of the upper layer device or cascading device through network cables.
External Connections of the N63E-22 Cabinet Installed with One Service Subrack
and One SPL Subrack (xDSL)
Figure 1-21 and Figure 1-22 show the external connections of the cabinet installed with one
service subrack and one SPL subrack.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
27

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
