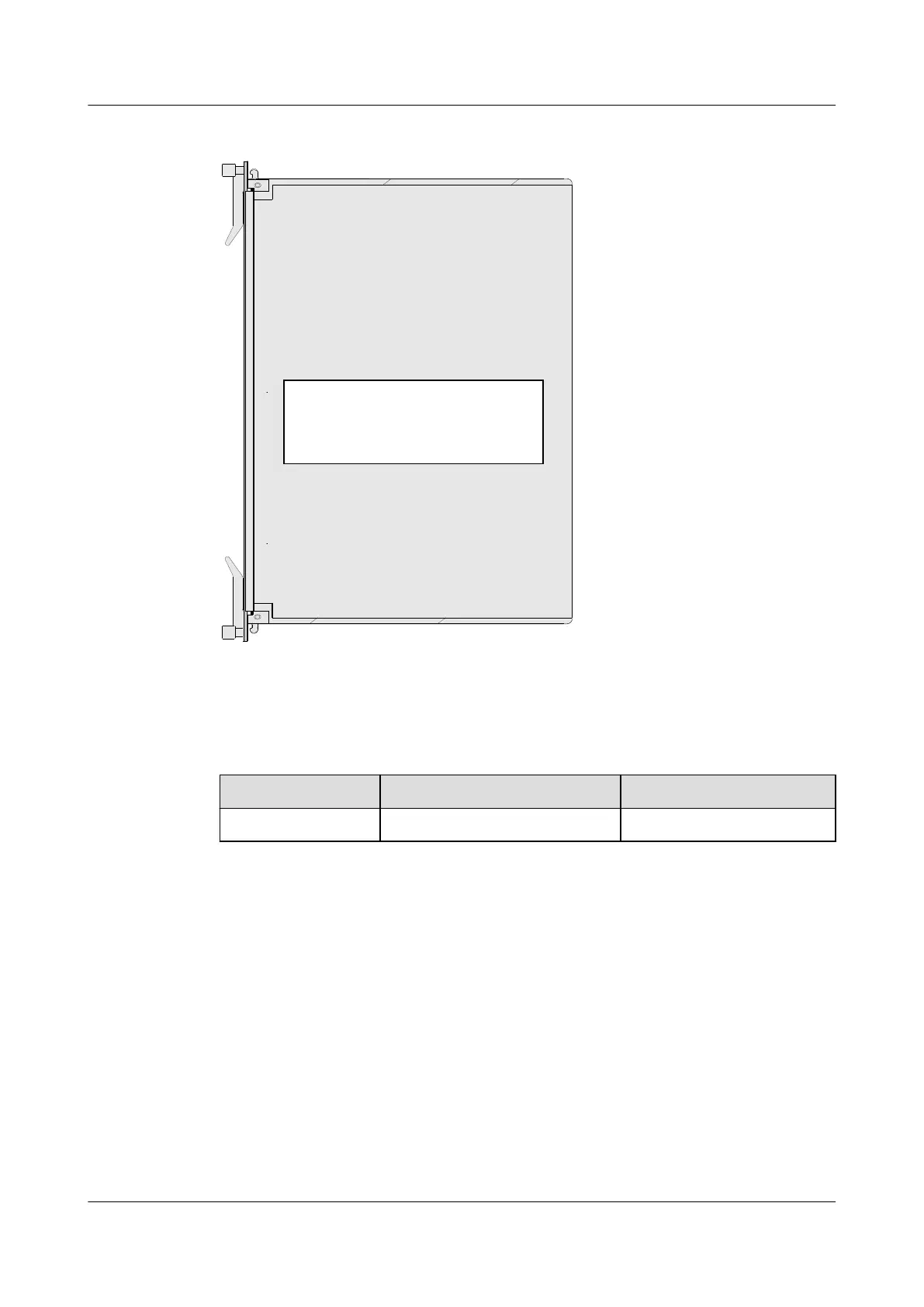

Figure 3-96 Position of the daughter board on the H802DSRD board
DSDB
Table 3-71 describes the daughter board supported by the H802DSRD board.
Table 3-71 Daughter board supported by the H802DSRD board
Daughter board
Function Remarks
H806DSDB Supports the VoIP function. Mandatory
Pin Assignments
Table 3-72 describes the pin assignments of the LINE port on the front panel of the
H802DSRD board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
498

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
