The cables of the N66E-18 dual-standard cabinet can be routed in the overhead cabling mode
or the underfloor cabling mode.
l In the overhead cabling mode, external cables are led into the cabinet through the top of
the cabinet. Figure 1-34 shows the positions of cable holes at the top of the cabinet.
l In the underfloor cabling mode, external cables are led into the cabinet through the
bottom of the cabinet. Figure 1-35 shows the positions of cable holes at the bottom of
the cabinet.

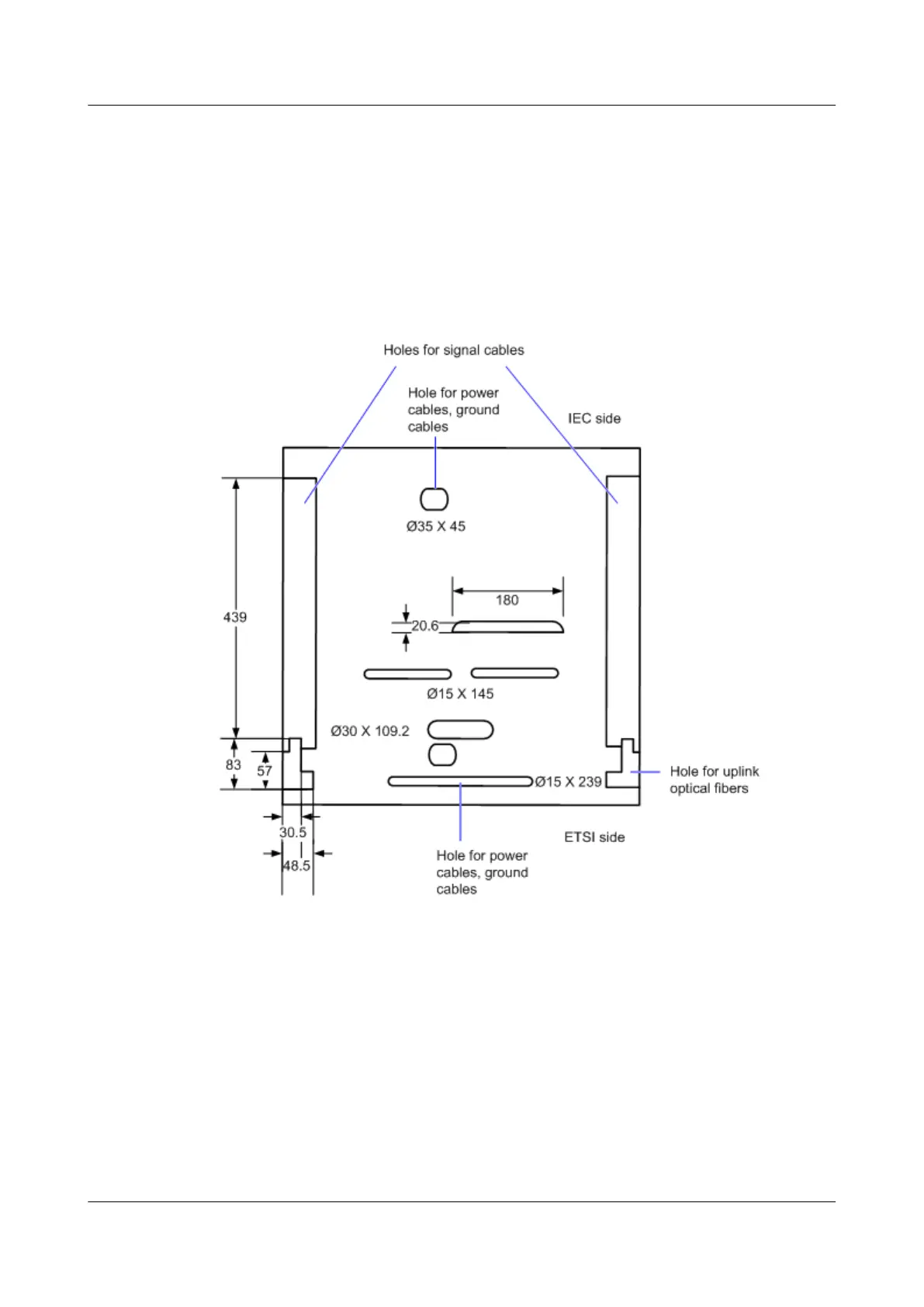

Figure 1-34 Cable holes at the top of the cabinet (top view)
