NOTICE
Filler panels must be installed in the vacant slots in the subrack. Otherwise, heat dissipation of
the boards will be affected.
Description
Table 3-228 describes the applicable slots, dimensions, and appearance of filler panels.

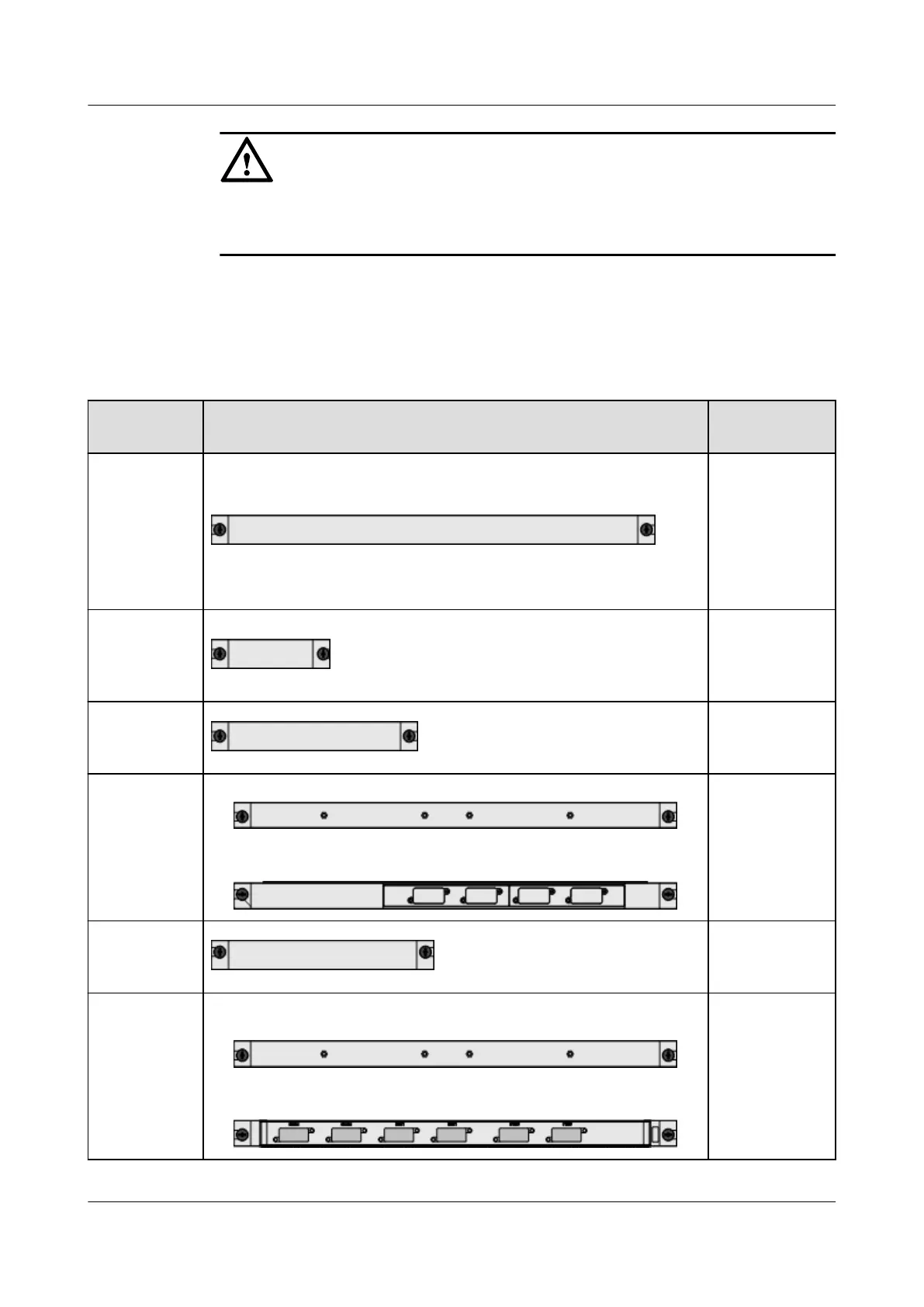

Table 3-228 Applicable slots, dimensions, and appearance of filler panels
Slot
Appearance (View of the Horizontally Placed Board)
Dimensions
(W x H)
Control board
slot
MA5600T/
MA5603T:
25.40 mm x
395.40 mm
MA5608T:
35.56 mm x
134.84 mm
Power board
slot
MA5600T/
MA5603T:
25.40 mm x
105.10 mm
Slot for
universal
interface board
25.40 mm x
183.20 mm
Service board
slot in the
service
subrack
l Default configuration:
l Pre-installing cables is required (in future when the ADPE, CAME, or
VDPE board is configured):
22.86 mm x
395.40 mm
GIU slot in the
service
subrack
25.40 mm x
197.20 mm
Service board
slot in the SPL
subrack
l Pre-installing cables is not required (same as the filler panel in the
service board slot of the service subrack):
l Pre-installing cables is required (in future when the 48-port or 64-port
SPL board is configured):
22.86 mm x
395.40 mm
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
838

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
