Huawei SmartAX MA5608T Hardware Description

Appearance and Structure
The appearances of a single-mode optical fiber and a multi-mode optical fiber are the same,
but their colors are different. The single-mode optical fiber is yellow, and the multi-mode
optical fiber is orange.

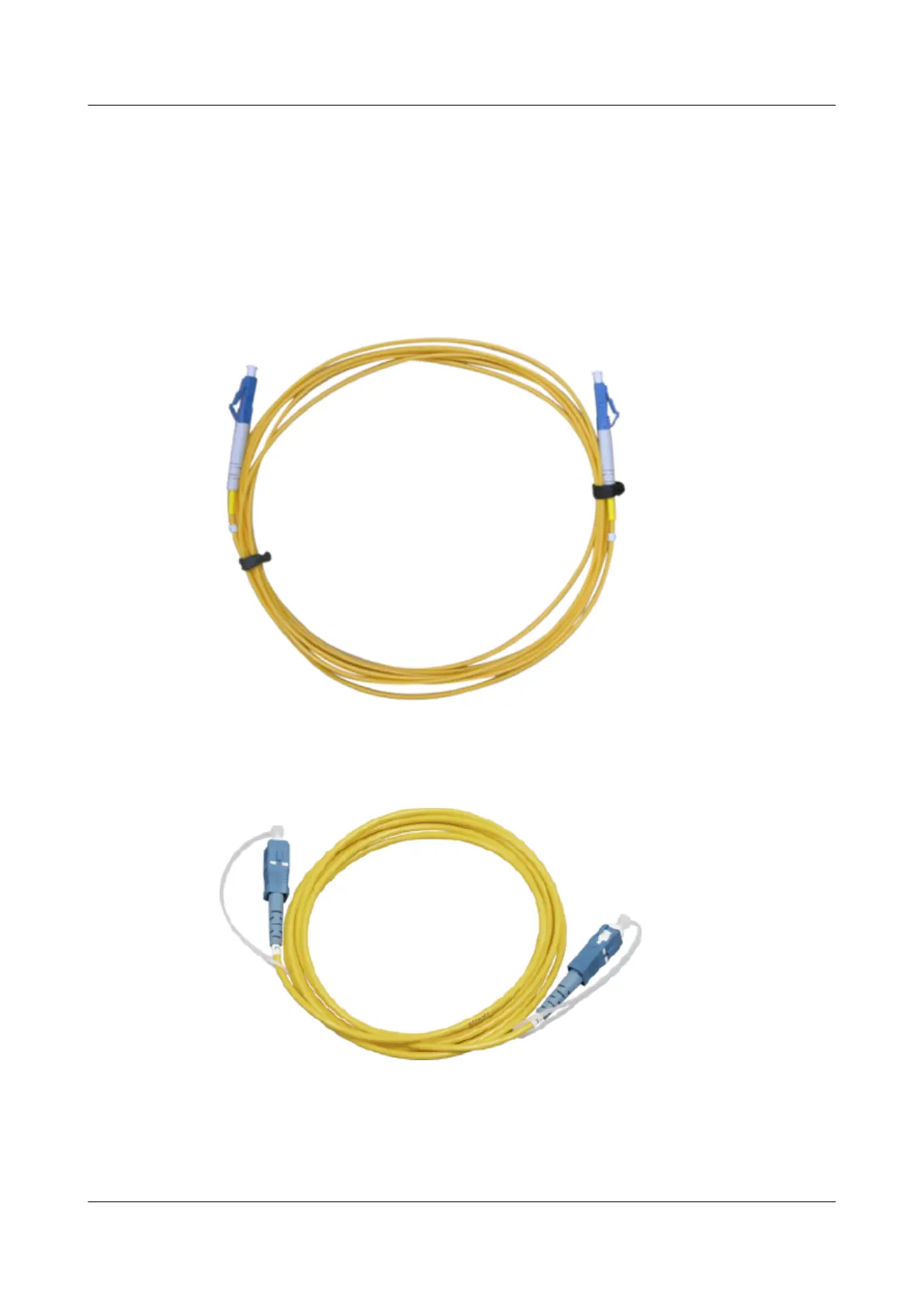

Figure 5-7 and Figure 5-8 show the appearances of single-mode optical fibers with different
connectors.
Figure 5-7 Appearance of a single-mode optical fiber with LC/PC connectors
Figure 5-8 Appearance of a single-mode optical fiber with SC/PC (SC/UPC) connectors
An optical fiber carries optical signals. It is connected as follows:
l One end of the optical fiber is connected to an optical port of a board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
901

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
