Output Terminal
The ETP4890 power system supports eight groups of output terminals. The left-side eight
output terminals are negative and the right-side eight output terminals are positive.

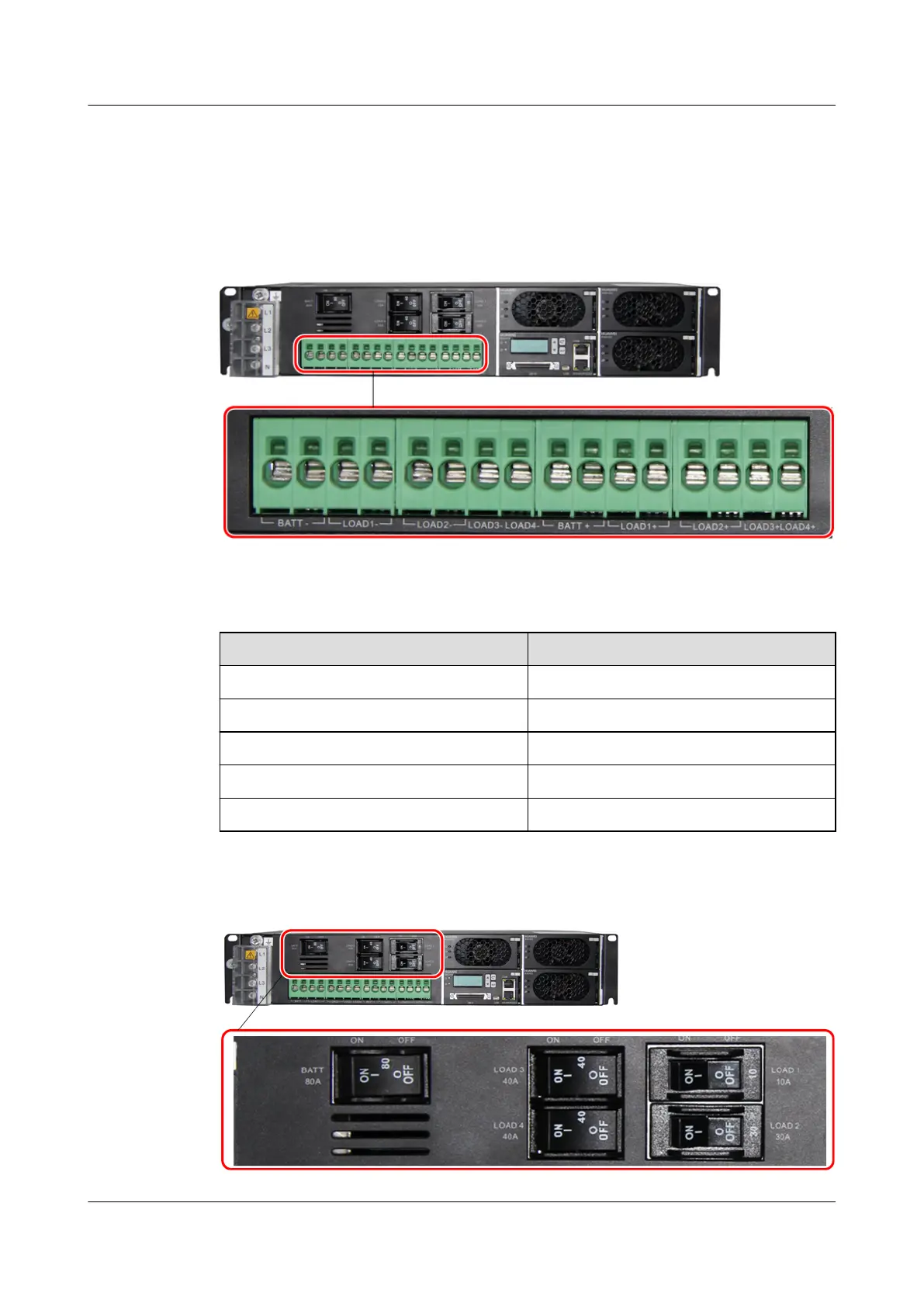

Figure 6-22 shows the output terminals in the ETP4890 power system.
Figure 6-22 Output terminals in the ETP4890 power system
Table 6-19 lists the Specifications of the output terminals.
Table 6-19 Specifications of the output terminals
Port
Circuit Breaker
LOAD1 10 A
LOAD2 30 A
LOAD3 40 A
LOAD4 40 A
BATT 80 A
Figure 6-23 shows the output branch circuit breaker in the ETP4890 system.
Figure 6-23 Output branch circuit breaker in the ETP4890 system
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
933

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
