Overview
Batteries are rechargeable and functions as a backup power supply for the device.
Outline

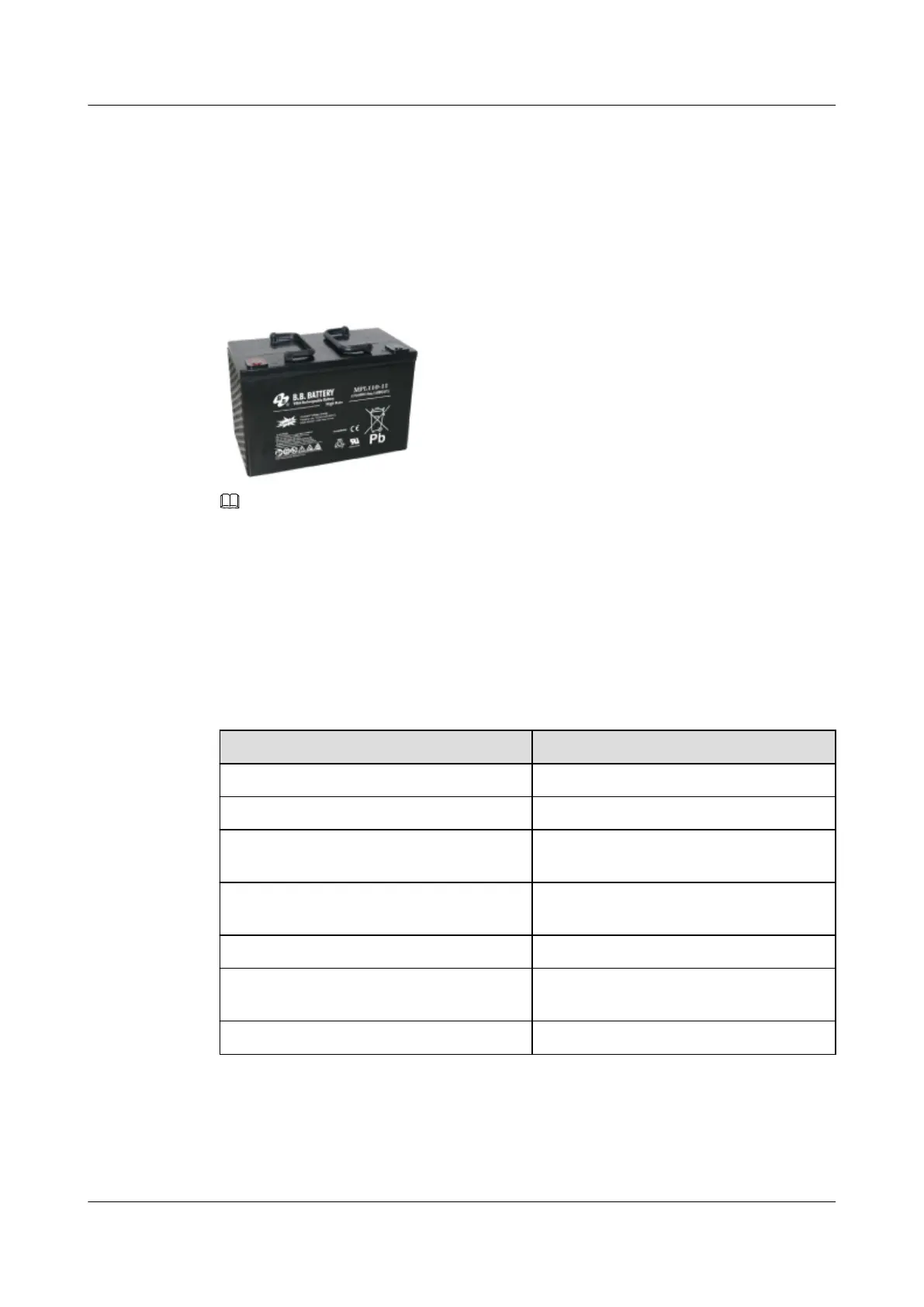

Figure 6-38 shows the outline of the 100 Ah battery.
Figure 6-38 Outline of the 100 Ah battery
NOTE
The 100 Ah storage battery shown in the figure is only for reference, which may differ from the
delivered storage battery.
Specifications
Table 6-40 lists the specifications of the 100 Ah battery.
Table 6-40 Specifications of the 100 Ah battery
Item
Value
Single battery voltage 12 V
Rated capacity 100 Ah
Equalized charging voltage (four batteries in
serial connection)
56.5 V
Floating charging voltage (four batteries in
serial connection)
53.5 V
Maximum charging current 25.0 A
Dimensions of a single battery (width x
depth x height)
330.0 mm x 173.0 mm x 218 mm
Weight of a single battery 34.3 kg
