Hughes Network Systems GMH2000 - Page 73

8018653 1.1 Installing BSC hardware • 2-51
HIGH ENERGY
SHOCK HAZARD
DISCONNECT PO
WER
BEFORE REMO
VING
THIS CO
VER
WARNING
OPEN
8
7654321
BSC CHASSIS ASSEMBLY
BACKPLANE
BLACK RECTANGLE INDICATES SIDE OF
SWITCH THAT IS PRESSED INWARDS.

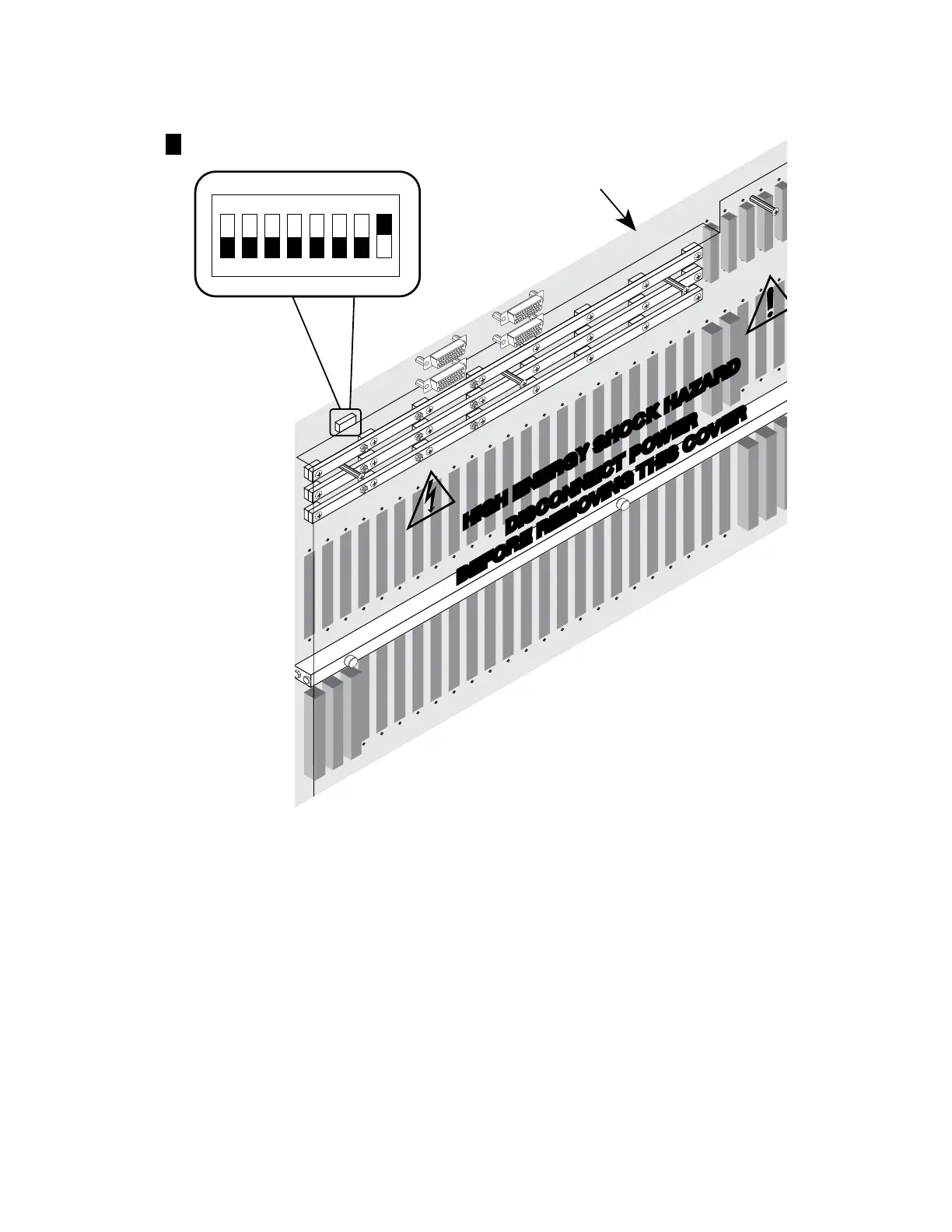

Figure 2-32. BSC chassis ID setting
