IAI RCP6S User Manual

3. Operation
Fieldbus Communication
136
RCP6
S
[8] Pause (STP) PLC Output Signal
Operation
Mode
Positioner 1 Simple Direct Direct numeric
specification
Positioner 2 Positioner 3 Positioner 5
{ : Equipped
×
: Not equipped
{ { { { { {
When this signal is turned ON, the actuator movement is decelerated and stopped. When it is
turned OFF, the actuator movement is restarted.
The acceleration in the operation restart or the deceleration in stopping operation, is expressed
as the value for the acceleration/deceleration for the position No. set using the specified
position No. resister in the Position* Mode and Simplified Direct Value Mode, and as the value
set in the acceleration/deceleration register in the Derect indication mode.
[9] Zone 1 (ZONE1) PLC Input Signal
Zone 2 (ZONE2) PLC Input Signal
Position Zone (PZONE) PLC Input Signal
Operation
Mode
Positioner 1 Simple Direct Direct numeric
specification
Positioner 2 Positioner 3 Positioner 5
{ : Equipped
×
: Not equipped
{ {
U
(No PZONE)
{
U
(Only for ZONE1)
U
(No PZONE)
This is a function enables to turn a signal on while the actuator is passing a certain position (in
the zone range) or during a stop, in which there are two types.
1) Zone signal (ZONE1, ZONE2)···· Turn the output on at a position set in the parameter.
2) Position zone signal (PZONE) ···· Turn the output on at a position set in the position table.
The roles of a sensor, such as the judgment of complete position at pressing complete,
continuous operation range setting for the pitch feed or operation interlock of other devices in
the setting range, can be made available.

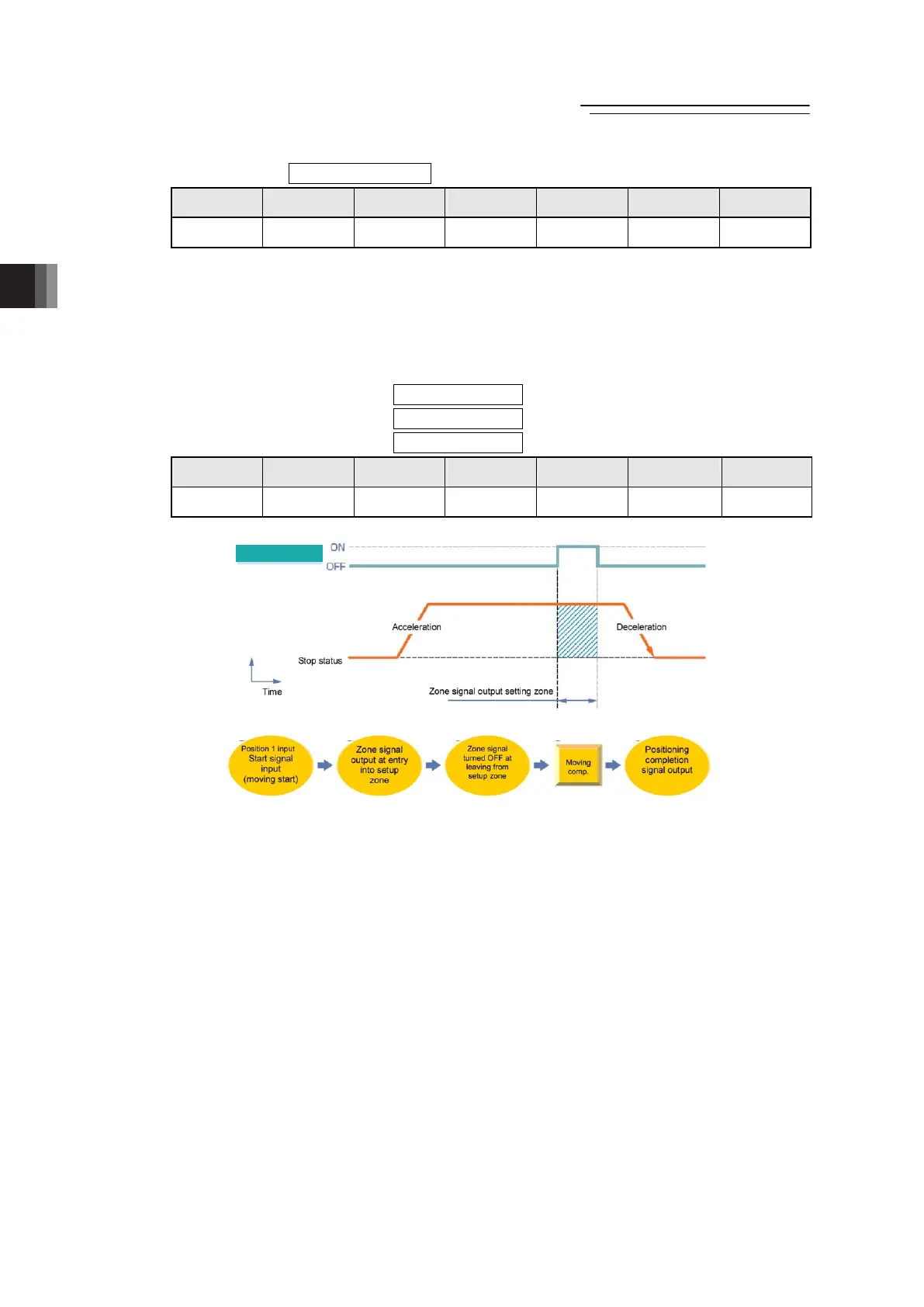

(1) Zone signal (ZONE1, ZONE2)
Set the zone range to the parameter.
1) ZONE1: Parameter No.1 (Zone boundary 1+), Parameter No.2 (Zone boundary 1-)
2) ZONE2: Parameter No.23 (Zone boundary 2+), Parameter No.24 (Zone boundary 2-)
The zone signal is kept effective also during the emergency stop unless the memory of the
origin is lost due to alarm.
Time
Velocity
Zone output signal
1) 2) 3) 4) 5)
1)
2) 3)
4) 5)
3.7.1
ME0349-4B
