3. Operation
Fieldbus Communication
86
RCP6

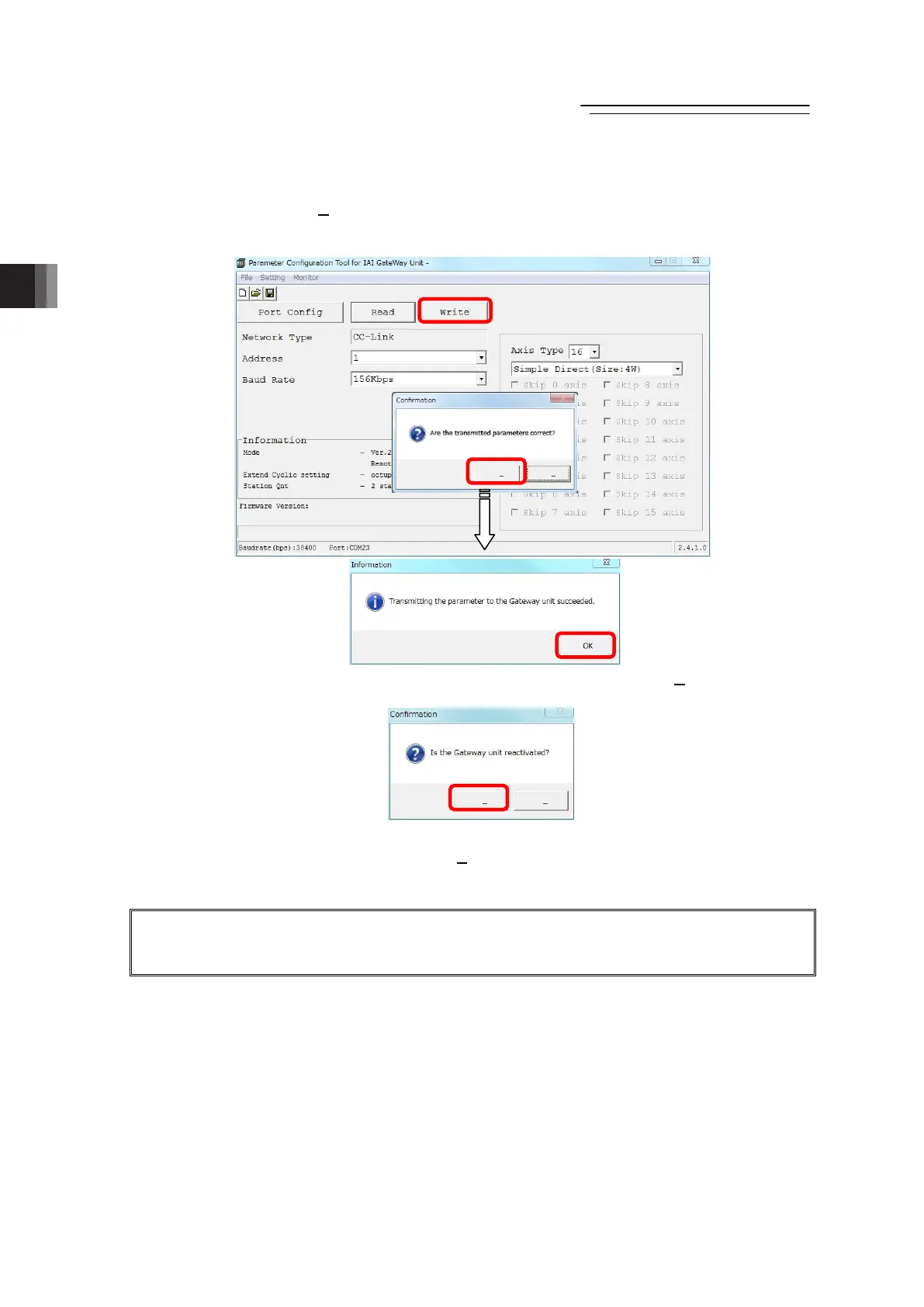

[Step 11] Write the edited operation mode setting parameters to RCP6S GW. Once ”Write”
button in the figure below is pressed, the confirmation message window appears.
Click on “Yes (Y
)” button.
If the writing is finished in normal condition, writing complete window appears.
Click “OK”.
[Step 12] A confirmation window for Gateway Unit reboot opens. Click “Yes (Y
)” to accept the
reboot.
[Step 13] After rebooting, a confirmation window for parameter reading appears for confirmation
of the written contents. Click “Yes (Y
)” to accept the reading.
Once the reading process is complete, confirm that the written contents are reflected.
If not written properly, do the process again from Step 1.
Reference: The settings are conducted in the special parameters for the process of
communication error, change in setting for enable, speed unit change for Direct
Indication Mode. Refer to 3.8 About Gateway Parameter Setting Tool for the details.
