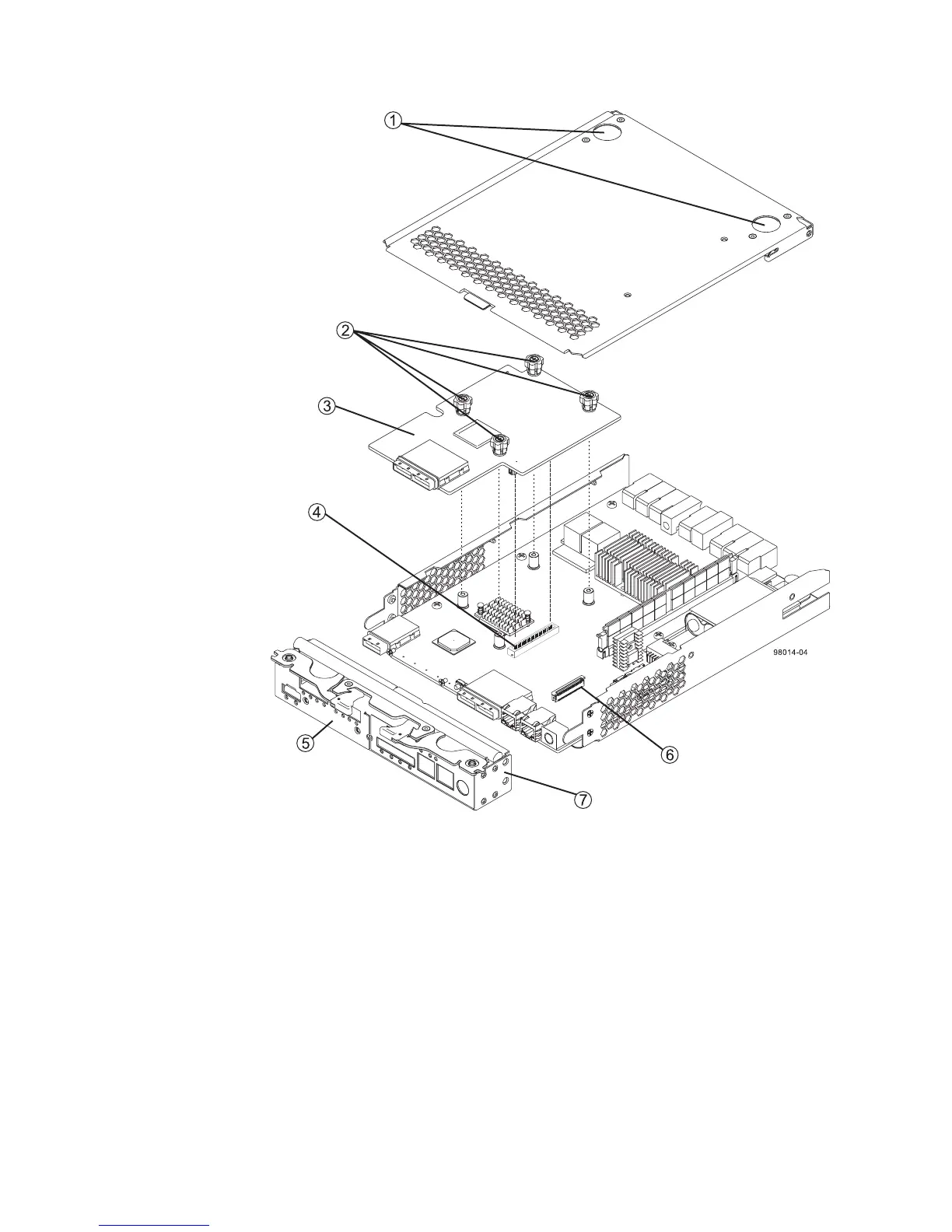

1. Top Cover Latch Buttons
2. HIC Thumbscrews
3. Host Interface Card
4. HIC Interface Connector
5. HIC Subplate
6. Zero Insertion Force (ZIF) Socket
7. Front Bezel
Figure 94. Sequence of removing controller components
Chapter 5. Replacing components 117
