One dual-controller DS3500 and two storage enclosures:
To cable a dual-controller DS3500 and two storage enclosures, connect them as
shown in Figure 41.
One dual-controller DS3500 and up to eight storage enclosures:
To cable a dual-controller DS3500 and up to eight storage enclosures, connect them
as shown in Figure 42 on page 53.

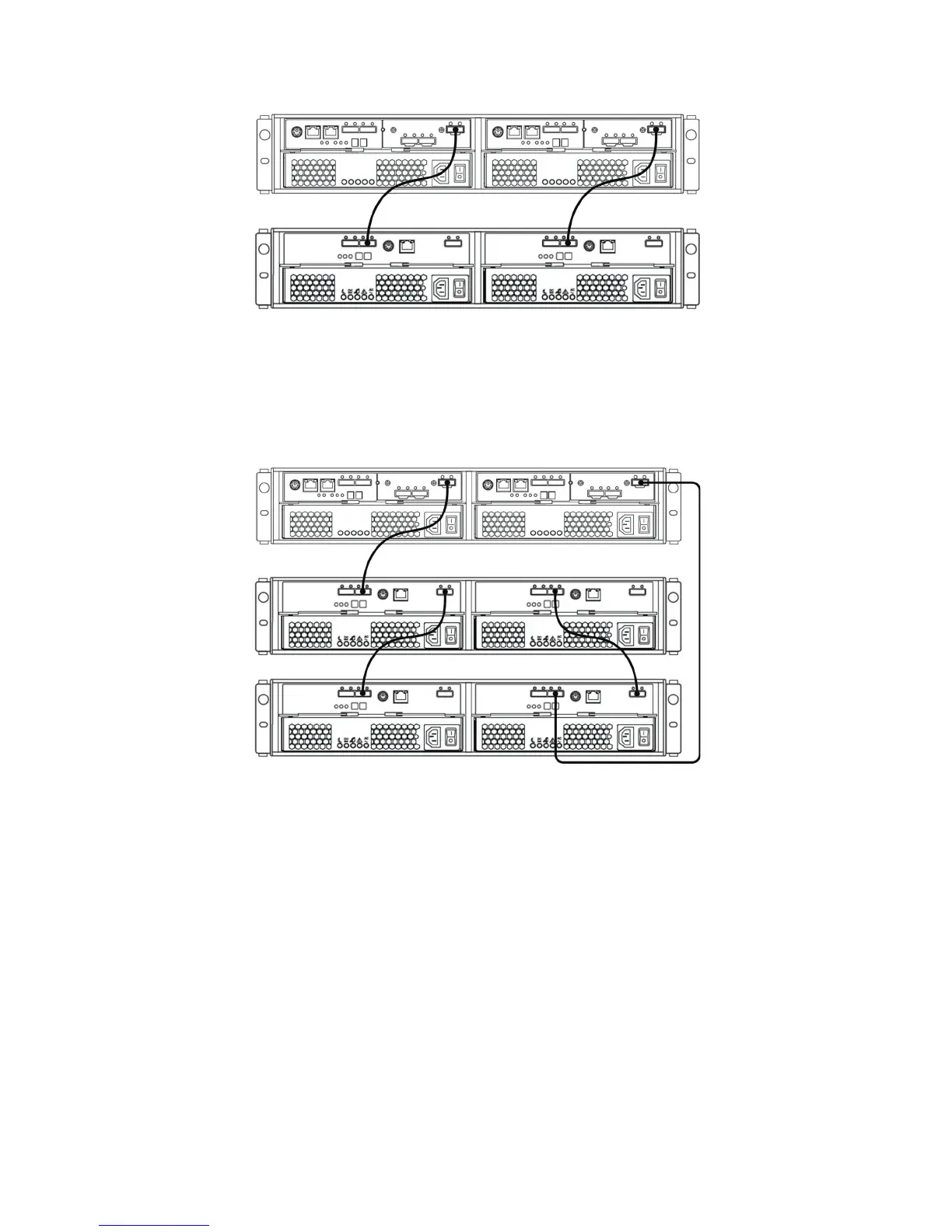

Figure 40. A dual-controller DS3500 and a storage enclosure
Figure 41. A dual-controller DS3500 and two storage enclosures
52 IBM System Storage DS3500 and EXP3500 Storage Subsystem: Installation, User's, and Maintenance Guide
