Figure 14 shows the dimensions of the DS3524 storage subsystem and EXP3524
storage enclosure, which conforms to the 19-inch rack standard.
Weight
The weight for each component of the DS3500 storage subsystem is listed here.
The total weight of the storage subsystem and storage enclosure depends on the
number of installed components. Table 4 lists the maximum and empty weights for
the DS3512 storage subsystem and EXP3512 storage enclosure in different
configurations. Table 5 on page 19 lists the maximum and empty weights for the
DS3524 storage subsystem and EXP3524 storage enclosure in different
configurations. Table 6 on page 19 lists the weight of each component.
Table 4. DS3512 storage subsystem and EXP3512 storage enclosure weights
Model Maximum
1
Empty
2
DS3512 27.0 kg (59.6 lb)
8.4 kg (18.5 lb)
EXP3512 26.3 kg (57.9 lb)
48.2 cm (19 in.)
44.9 cm (17.7 in.)
8.6 cm (3.4 in.)
54.0 cm (21.3 in.)

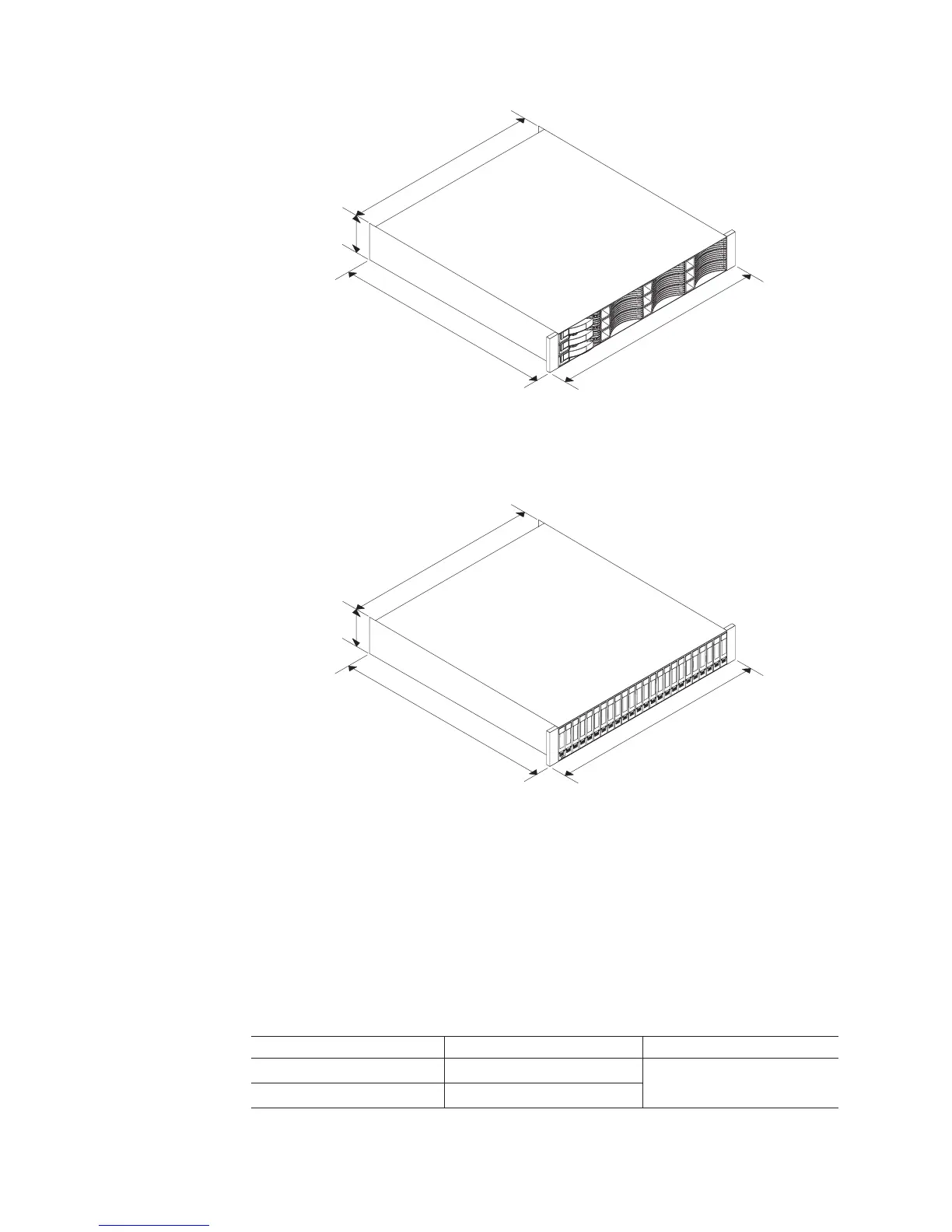

Figure 13. DS3512 storage subsystem and EXP3512 storage enclosure dimensions
48.2 cm (19 in.)
44.9 cm (17.7 in.)
8.8 cm (3.5 in.)
48.7 cm (19.2 in.)
Figure 14. DS3524 storage subsystem and EXP3524 storage enclosure dimensions
