Figure 30.
Lever
Latches
2. While pressing down the cable lever, carefully pull the connector to remove the
cable from the SFP module, as shown in Figure 31.
3. Replace the protective caps on the cable ends.
4. Replace the protective cap on the SFP module.
Using LC-SC Fibre Channel cable adapters
The LC-SC Fibre Channel cable adapter is a fiber optic cable that is used to connect
an LC connector to one of the following devices that require SC connectors:
v 1-Gbps Fibre Channel switch
v Fibre Channel host bus adapter
For more information, see the documentation that is shipped with the LC-SC Fibre
Channel cable adapter.

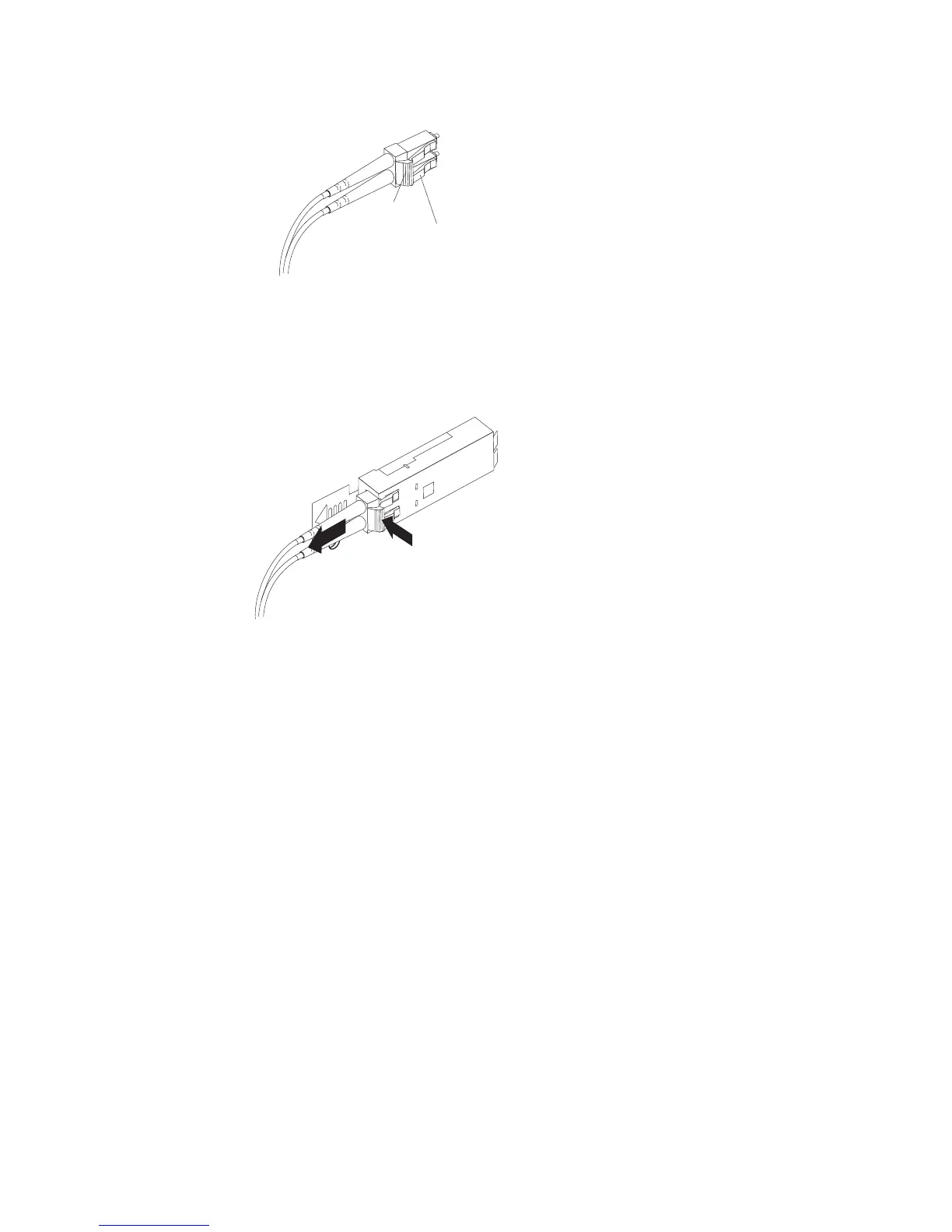

Figure 30. LC-LC Fibre Channel cable lever and latches
Figure 31. Removing the LC-LC Fibre Channel cable
42 IBM System Storage DS3500 and EXP3500 Storage Subsystem: Installation, User's, and Maintenance Guide
