5. (DS3512 and EXP3512) Install the drive.
a. Press the latch on the end of the drive enclosure handle to release it, then
pull out the enclosure handle to the open position.
b. Slide the drive all the way into the empty bay until the drive stops.
c. Push the enclosure handle into the closed (latched) position.
6. (DS3524 and EXP3524) Install the drive.
a. Push up the latch on the handle to release it then, pull out the enclosure
handle to the open position.
b. Slide the drive all the way into the empty bay until the drive stops.
c. Push the enclosure handle into the closed (latched) position.
Drive tray
Tray handle
Latch
Hard disk drive

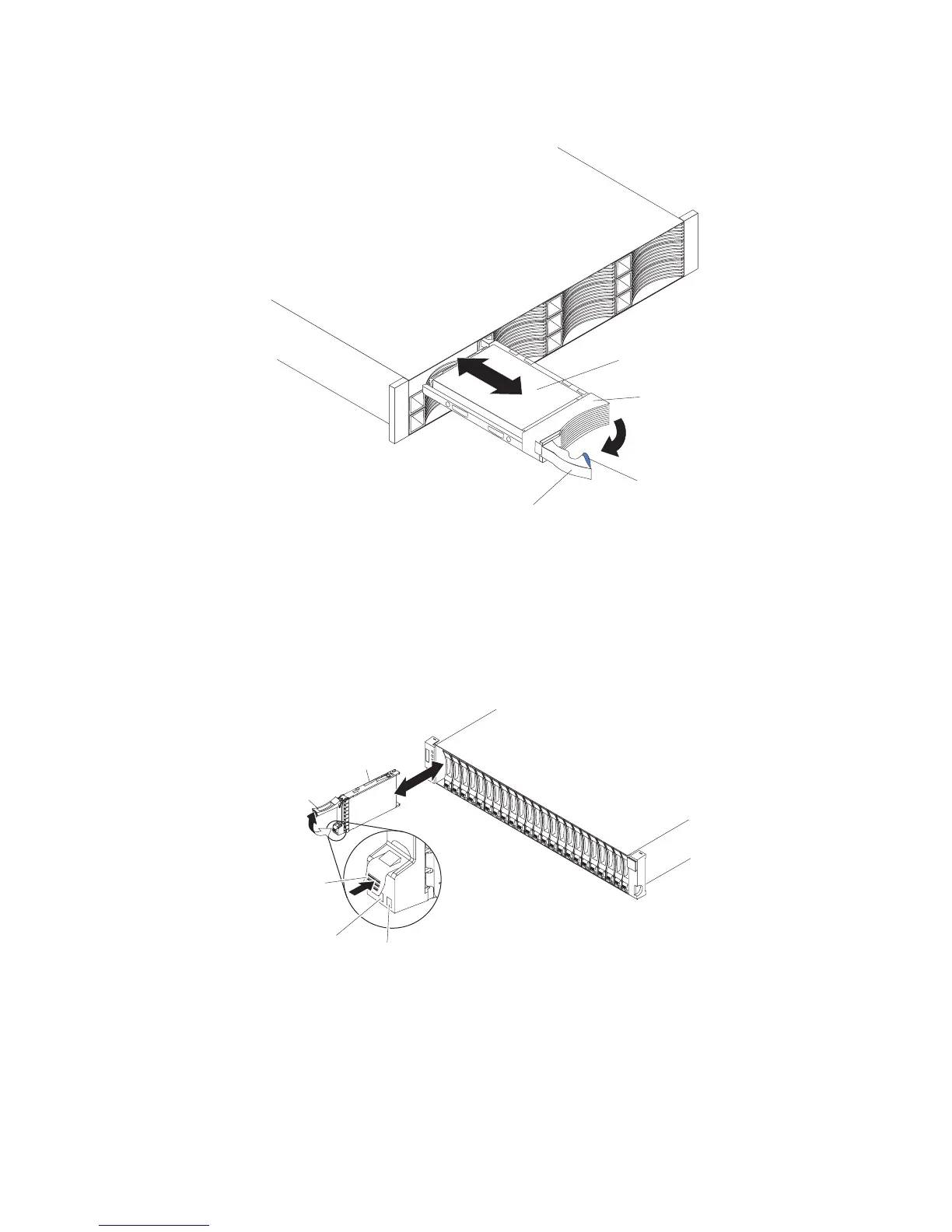

Figure 102. Installing a drive in a DS3512 or EXP3512
Sys
t
em
S
torage
Hard disk
drive status
LED (amber)
Hard disk
drive
assembly
Drive
handle
Release
latch
Hard disk
drive activity
LED (green)
Figure 103. Installing a drive in a DS3524 or EXP3524
Chapter 5. Replacing components 125
