Connecting an LC-LC cable to an SFP module:
To connect an LC-LC Fibre Channel cable to an SFP module, complete the
following steps.
CAUTION:
This product might contain one or more of the following devices: CD-ROM
drive, DVD-ROM drive, DVD-RAM drive, or laser module, which are Class 1
laser products. To avoid exposure to hazardous laser radiation, do not remove
the covers of the laser product, or use the controls, or adjust procedures other
than the specifications in this guide. There are no serviceable parts inside the
device (C026).
CAUTION:
Data processing environments can contain equipment transmitting on system
links with laser modules that operate at greater than Class 1 power levels. For
this reason, never look into the end of an optical fiber cable or open receptacle
(C027).
1. Read the information in “Handling fiber optic cables” on page 36.
2. If necessary, remove the protective cap from the SFP module, as shown in
Figure 23 on page 38. Save the protective cap for future use.
3. Remove the two protective caps from one end of the LC-LC cable, as shown in
Figure 28 on page 41. Save the protective caps for future use.

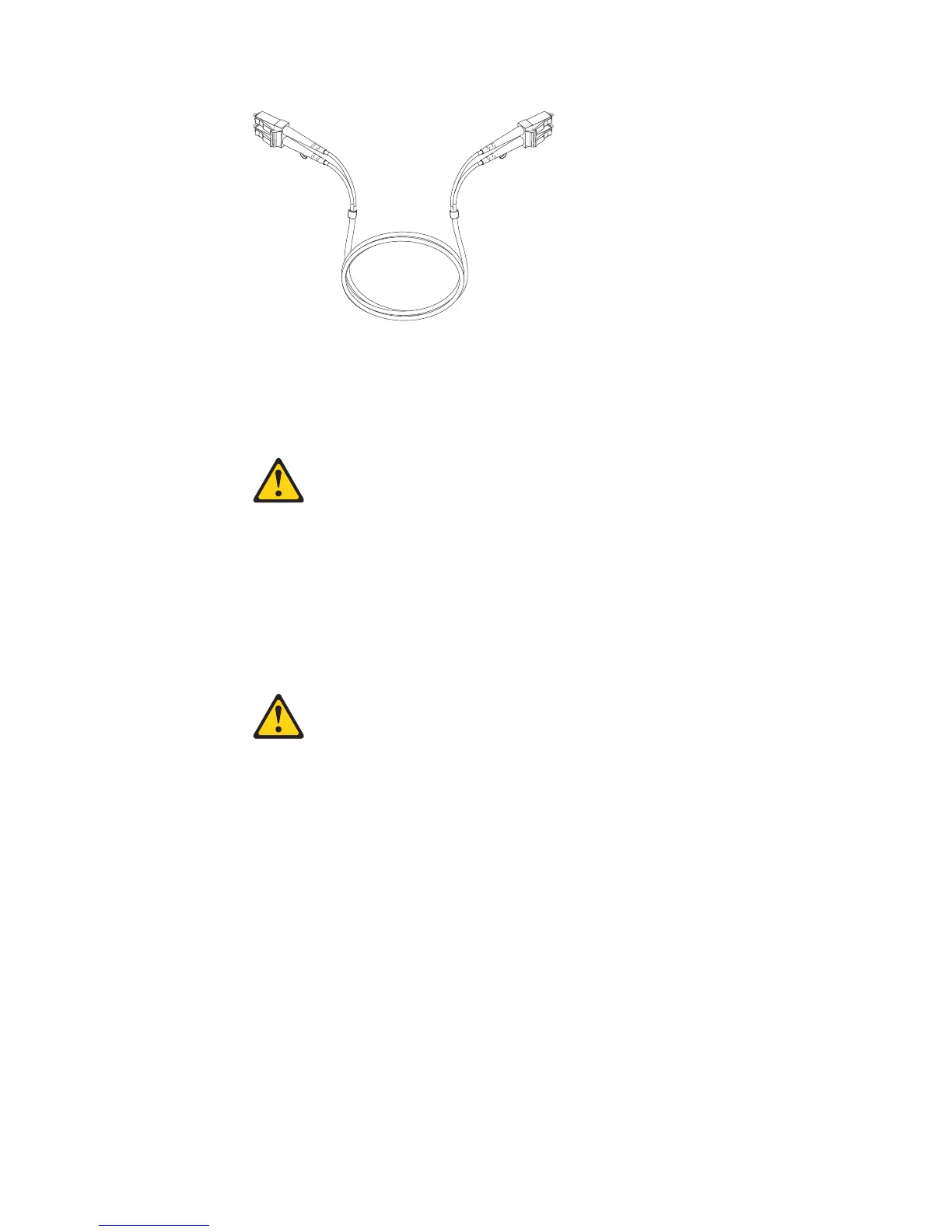

Figure 27. LC-LC Fibre Channel cable
40 IBM System Storage DS3500 and EXP3500 Storage Subsystem: Installation, User's, and Maintenance Guide
