21. Turn the locking latch, and lift the plastic stop for the adapter.

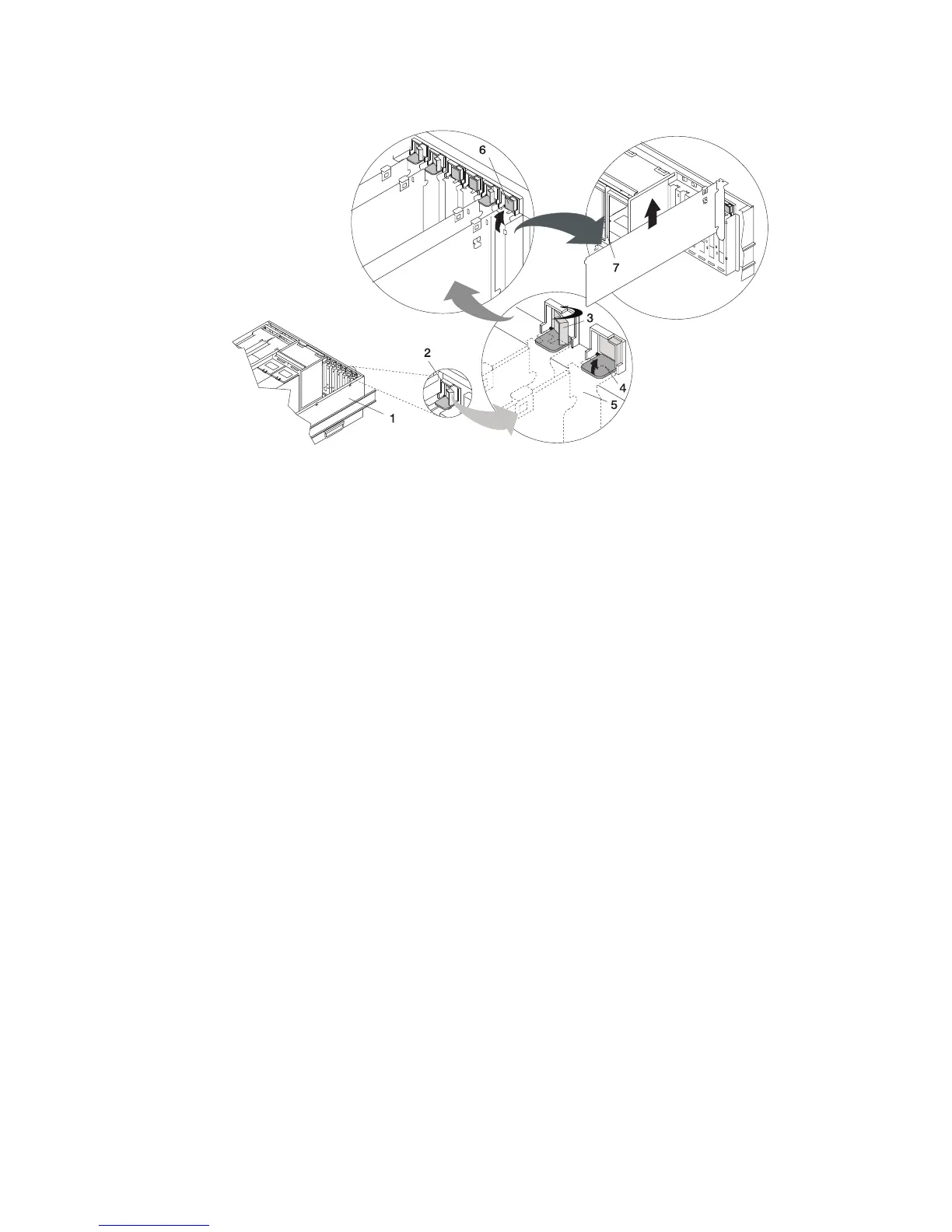

1 System Unit 5 PCI adapter faceplate (dotted lines)
2 Adapter Retainer Assembly 6 Adapter Retainer Assembly (in the unlocked
position)
3 Adapter Retainer Assembly (retainer seat
down and the retainer clip in the locked
position)
7 PCI Adapter
4 Adapter Retainer Assembly (retainer seat
down and the retainer clip in the unlocked
position)
22. Carefully grasp the adapter by the edges, and pull it straight out from the PCI riser card.
23. If necessary, remove the replacement adapter from the antistatic package.
Attention: Avoid touching the components and gold-edge connectors on the adapter.
24. Place the adapter, component-side up, on a flat, static-protective surface.
25. Set any jumpers or switches as instructed by the adapter manufacturer.
26. Replace the adapter into the adapter slot. Carefully grasp the adapter by the edges and align the
adapter in the slot guides. Insert the adapter fully into the adapter slot connector. If you are installing
a full-length adapter, ensure that both ends of the adapter engage the card guides.
27. Lower the plastic retaining seat over the PCI adapter face plate (dotted lines). Rotate the locking latch
clockwise until it clicks into the locked position. Some full-length cards can be supported by rotating
the blue adapter latch on the right end of the adapter counterclockwise.
Chapter 9. Removal and Replacement Procedures 455
