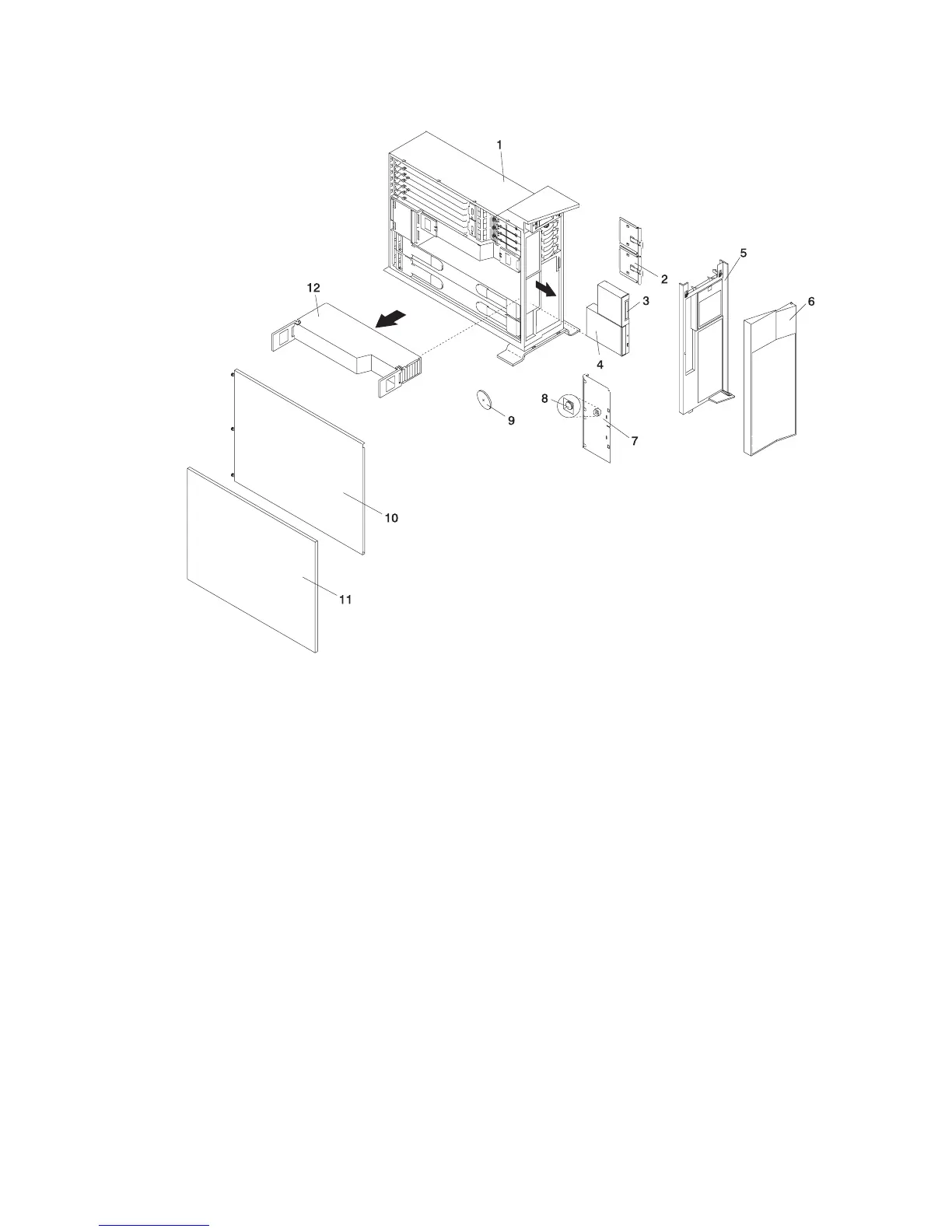

Model 6E4 Battery
1 Model 6E4 7 Media Device Support Shelf
2 Media Carrier Trays 8 Captive Thumbscrew
3 Media Device (for example: Tape Drive
or Diskette Drive)
9 Battery (positive (+) side facing up)
4 IDE CD-ROM Drive 10 Service Access Cover
5 Front Bezel 11 Outer Side Cover
6 Bezel Door 12 Processor Assembly
Chapter 9. Removal and Replacement Procedures 499
