IBM pSeries 630 6C4 - Component LEDs

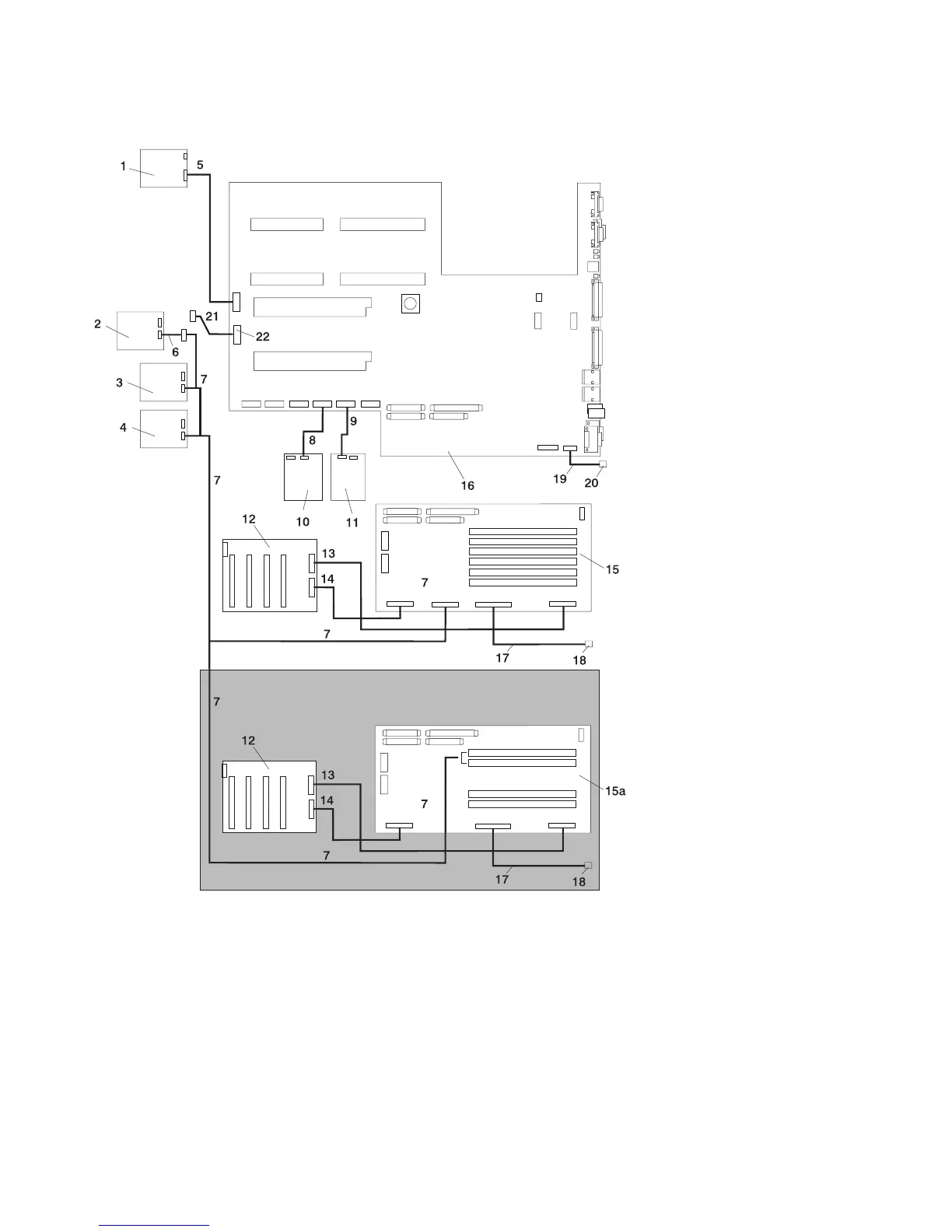

Note: The following illustration shows the signal cabling for either the four or six slotted PCI riser card.
The shading has been placed around the four slotted PCI riser card to better separate the cards.
524 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
