Pin Signal
4 Not used
5 Not used
7 Not used
8 Not used
Table 46. 10/100/1000BASE-T Management Port Cable Pinout (MDI)(continued)

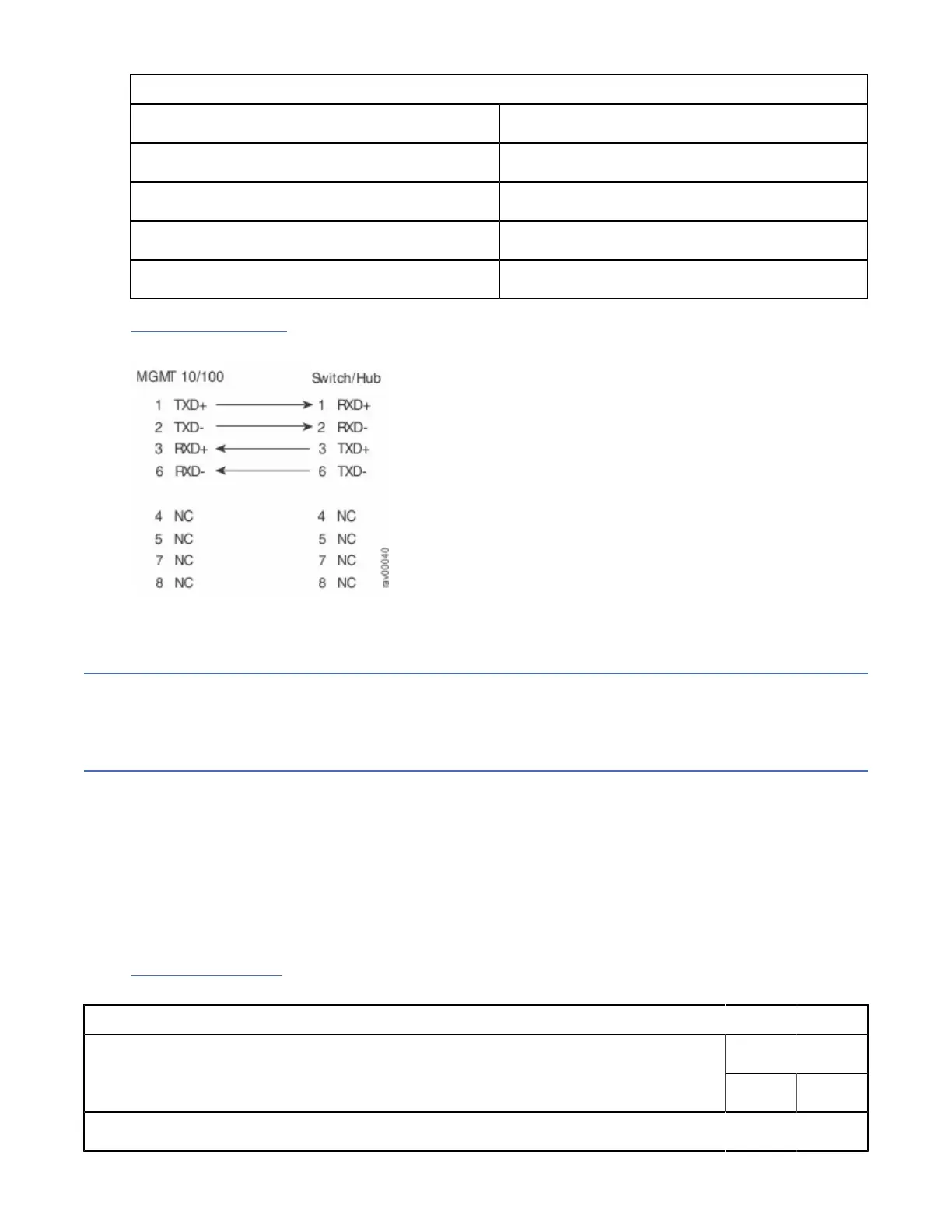

Figure 40 on page 153 shows a schematic of the 10/100/1000BASE-T cable required to connect the
management port to a switch or hub (not provided with the switch).
Figure 40. Twisted-Pair 10/100/1000BASE-T Cable Schematic
Supported Power Cords and Plugs
Each power supply has a separate power cord. Standard power cords or jumper power cords are available
for connection to a power distribution unit having IEC 60320 C19 outlet receptacles.
Power Cords
The standard power cords have an IEC C19 connector on the end that plugs into the switch. The optional
jumper power cords have an IEC C19 connector on the end that plugs into the switch, and an IEC C20
connector on the end that plugs into an IEC C19 outlet receptacle.
Note: Only the regular power cords or jumper power cords provided with the switch are supported.
Note: If you do not order the optional power cord with the system, you are responsible for selecting the
appropriate power cord for the product. Using a non-compatible power cord with this product can result
in electrical safety hazard. Orders delivered to Argentina, Brazil, and Japan must have the appropriate
power cord ordered with the system.
Table 47 on page 153 lists the power cords for the IBM c-type Directors and provides their lengths in
feet and meters.
LengthDescription
Feet Meters
SAN384C-6 - 3000W Power Supply
Table 47. Power Cords for the IBM c-type Director
Appendix B. Cable and Port Specifications153
