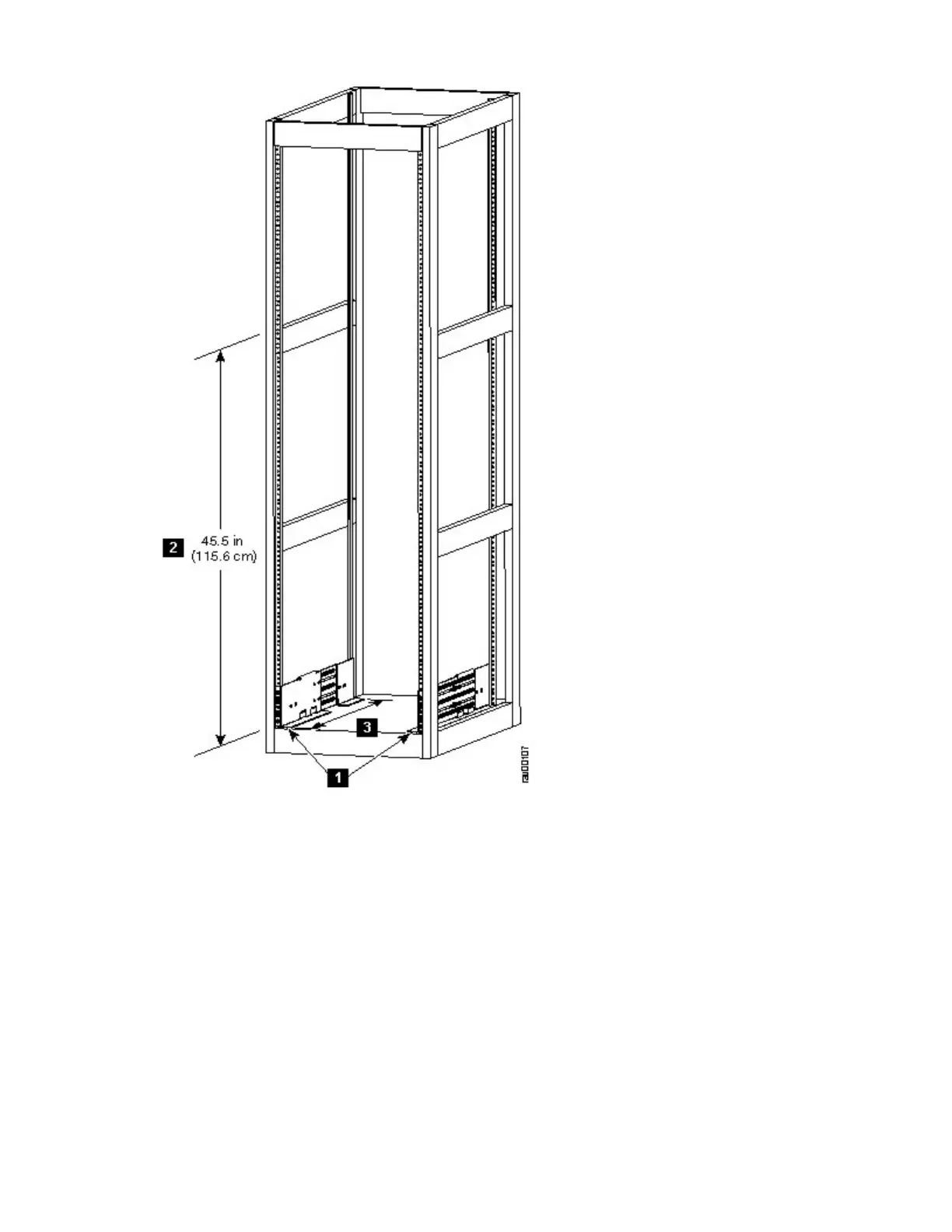

Figure 26. Positioning Bottom-Support Rail - SAN768C-6 Chassis
1. Position two bottom-support rails at the lowest RU on the rack.
2. Allow at least 45.5 inches (115.6 cm) (26 RU) for each chassis.
2. Use a manual Phillips torque screwdriver to attach the bottom-support rail to the rack using at least
three or four M6 x 19 mm or 12-24 x 3/4 inch screws for each end of the rail (using a total of 6 to 8
60IBM Storage Networking SAN192C-6, SAN384C-6 and SAN768C-6: SAN192C-6, SAN384C-6 and
SAN768C-6 Installation, Service, and User Guide
