SAN192C-6 Chassis
The SAN192C-6 is a six-slot chassis with two supervisor modules, and up to four I/O modules. The
chassis holds up to six crossbar fabric switching modules, up to four AC power supplies and three fan
modules. Airflow is front-to-back (port-side intake) in the SAN192C-6 chassis.
Note: The base configuration of the SAN192C-6 ships with two supervisor modules, three cross bar
fabric modules, and four power supplies.
Figure 5 on page 10 shows the front view of the SAN192C-6 chassis.

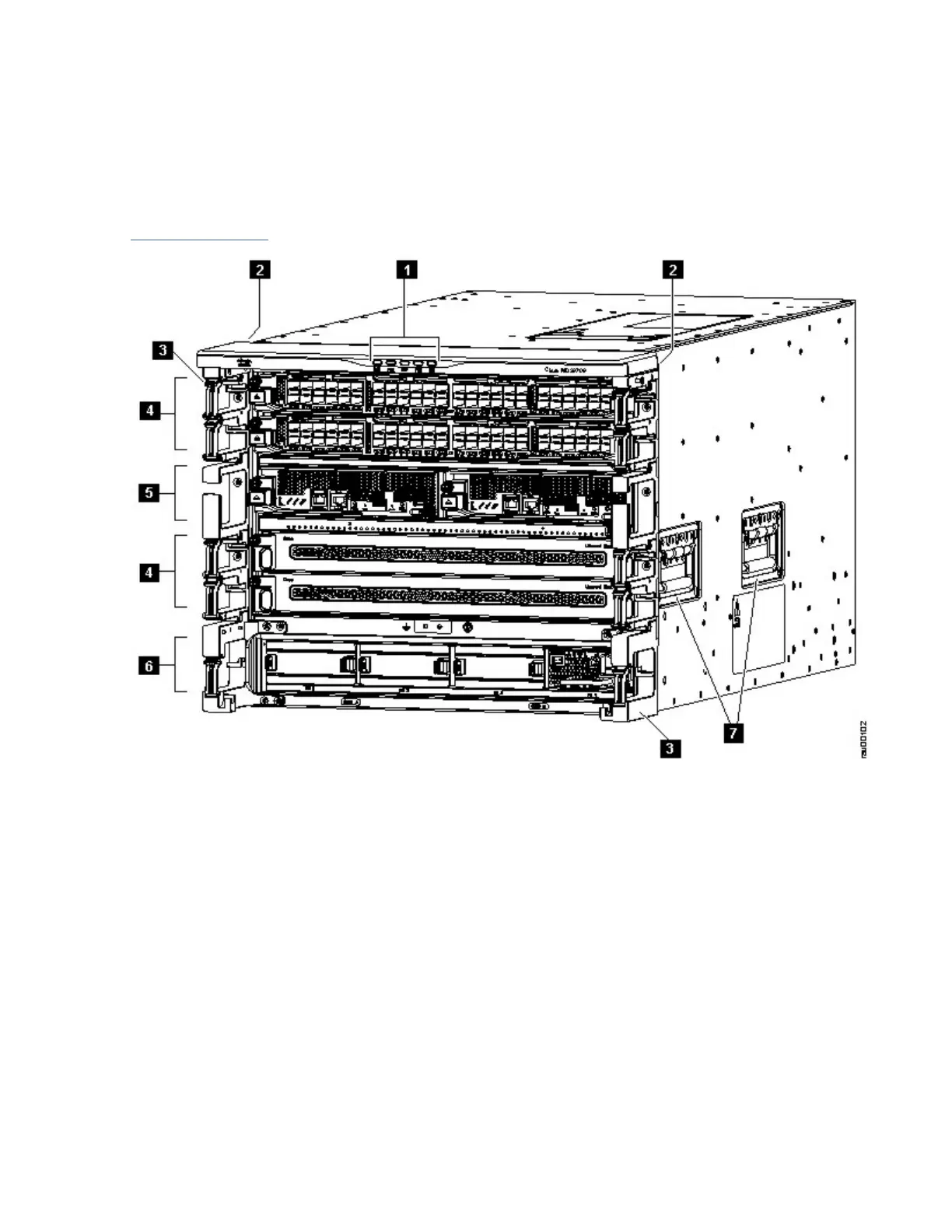

Figure 5. SAN192C-6 Chassis Front View
1. System LEDs
2. Rack-mount brackets
3. Cable management frame
4. I/O modules slots numbered 1-2 and 4-5 from top to bottom.
5. Supervisor module in slots numbered 5 and 6 from left to right.
Each slot is half the width of the chassis and each slot can hold one supervisor module.
6. Power supply modules (up to 4 bays)
The last row has 4 bays of power supply at the bottom of the chassis. Each bay can hold one power
supply.
7. Handles used for adjusting the chassis placement
Note: Handles are to be used only for positioning an empty chassis.
8. Gid A PSU bays (1, 2 slots)
9. Grid B PSU bays (3,4 slots)
10IBM Storage Networking SAN192C-6, SAN384C-6 and SAN768C-6: SAN192C-6, SAN384C-6 and
SAN768C-6 Installation, Service, and User Guide
