• Power-on self-test (POST) and diagnostics
• Switched Port Analyzer (SPAN) and Remote Switched Port Analyzer (RSPAN)

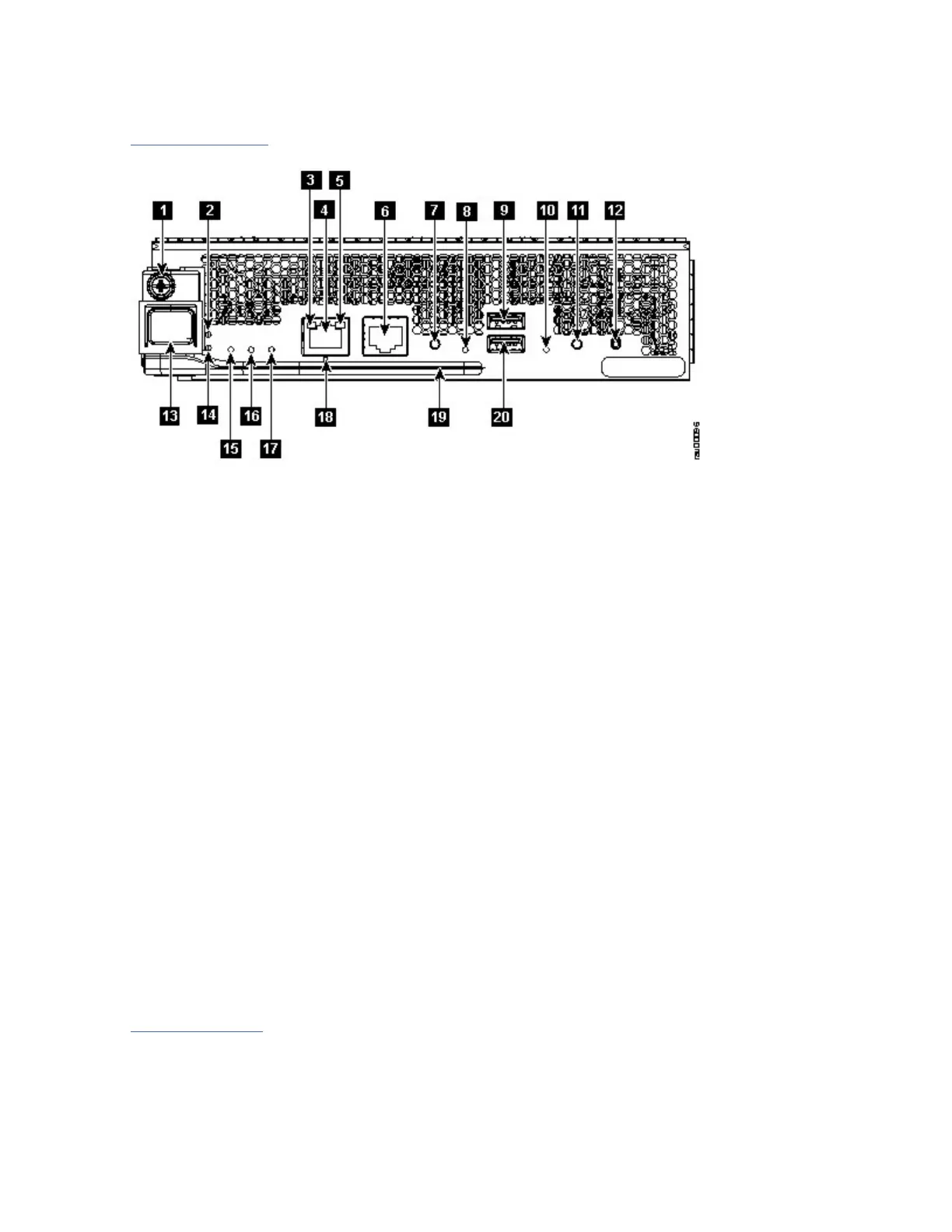

Figure 9 on page 21 shows the IBM c-type SAN switches and directors Supervisor-1 module.
Figure 9. IBM Supervisor-1 Module
1. Module retaining screw
2. ID: locator LED
3. Link: management port link status LED
4. MGMT Ethernet: system out of band Ethernet management port
5. ACT: management port packet activity LED
6. Console Serial Port: module serial console port
7. Eject Request: eject request button for USB1 device
8. USB1: usb1 status LED
9. USB1 USB port
10. Slot0: slot0 status LED
11. Eject Request: eject request button for slot0 device
12. Reset: module reset button
13. Module lock release button
14. Status: system diagnostic test status LED
15. System: system environment status LED
16. Active: supervisor redundancy status LED
17. PWR MGMT: system power status LED
18. Management port operational status LED
19. Module ejection lever
20. Slot0 USB port
Table 5 on page 22 describes the LEDs on the IBM c-type SAN switches and directors Supervisor-1
Module.
Chapter 1. Introducing the IBM c-type SAN Directors21
