locate the crossbar fabric switching module in slot 4, the locator LED of the fan module 2 needs to be
activated followed by the locator LED of the crossbar fabric switching module 4.
Fibre Channel Switching Modules
This section describes “IBM 48 port 32 Gbps Fibre Channel Switching Module” on page 32 supported
by the IBM c-type SAN director switches.
IBM 48 port 32 Gbps Fibre Channel Switching Module
The IBM 48 port 32 Gbps Fibre Channel switching module is designed specifically for the IBM c-type SAN
directors.
With 768 line-rate 32 Gbps Fibre Channel ports per director, the 32 Gbps 48 port Fibre Channel switching
module meets the high-performance needs for flash-memory and Non-Volatile Memory Express (NVMe)
over Fibre Channel workloads. The switching module is hot swappable and compatible with 4 Gbps,
8 Gbps, 16 Gbps, and 32 Gbps Fibre Channel interfaces. This module also supports hot swappable
Enhanced Small Form-Factor Pluggable (SFP+) transceivers.
Individual ports can be configured with 32 Gbps, 16 Gbps, 8 Gbps and 4 Gbps SFP+ transceivers. Each
port supports 500 buffer credits for exceptional extensibility without the need for additional licenses.
With the Enterprise Package license, up to 8191 buffer credits can be allocated to an individual port,
enabling full link bandwidth over long distances with no degradation in link utilization.

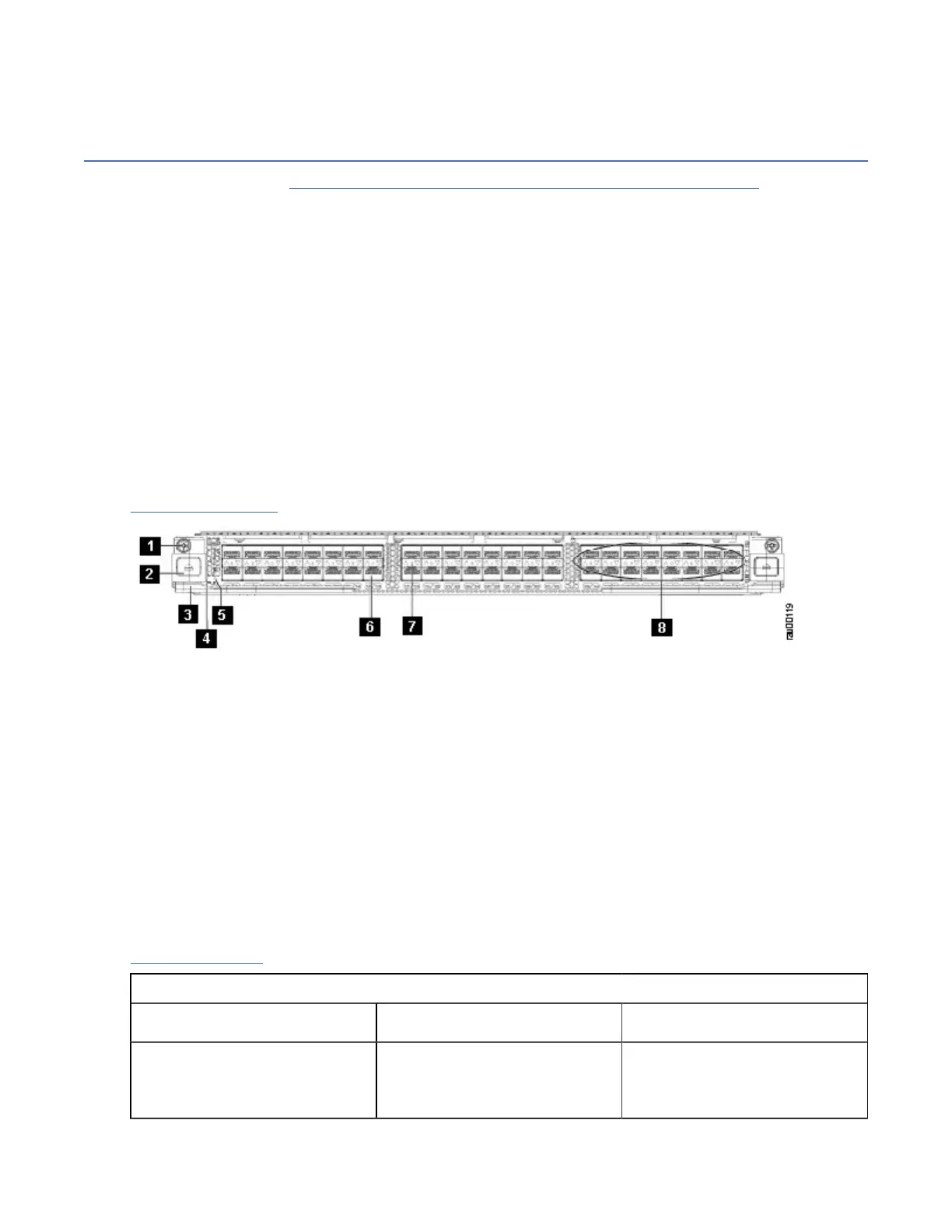

Figure 13 on page 32 shows the IBM 48 port 32 Gbps Fibre Channel Switching Module.
Figure 13. IBM 48 port 32 Gbps Fibre Channel Switching Module
1. Captive screw
2. Unlock button
3. Unlocking lever
4. Status LED
5. ID LED
6. Fibre Channel ports
7. Link LEDs
8. Fibre Channel port group
LEDs on the 48 port 32 Gbps Fibre Channel Switching Modules
Table 9 on page 32 describes the LEDs for the 48 port 32 Gbps Fibre Channel switching module.
LED Status Description
Status Green All diagnostics pass. The
module is operational (normal
initialization sequence).
Table 9. IBM 48 Port 32 Gbps Fibre Channel Switching Module LEDs
32IBM Storage Networking SAN192C-6, SAN384C-6 and SAN768C-6: SAN192C-6, SAN384C-6 and
SAN768C-6 Installation, Service, and User Guide
