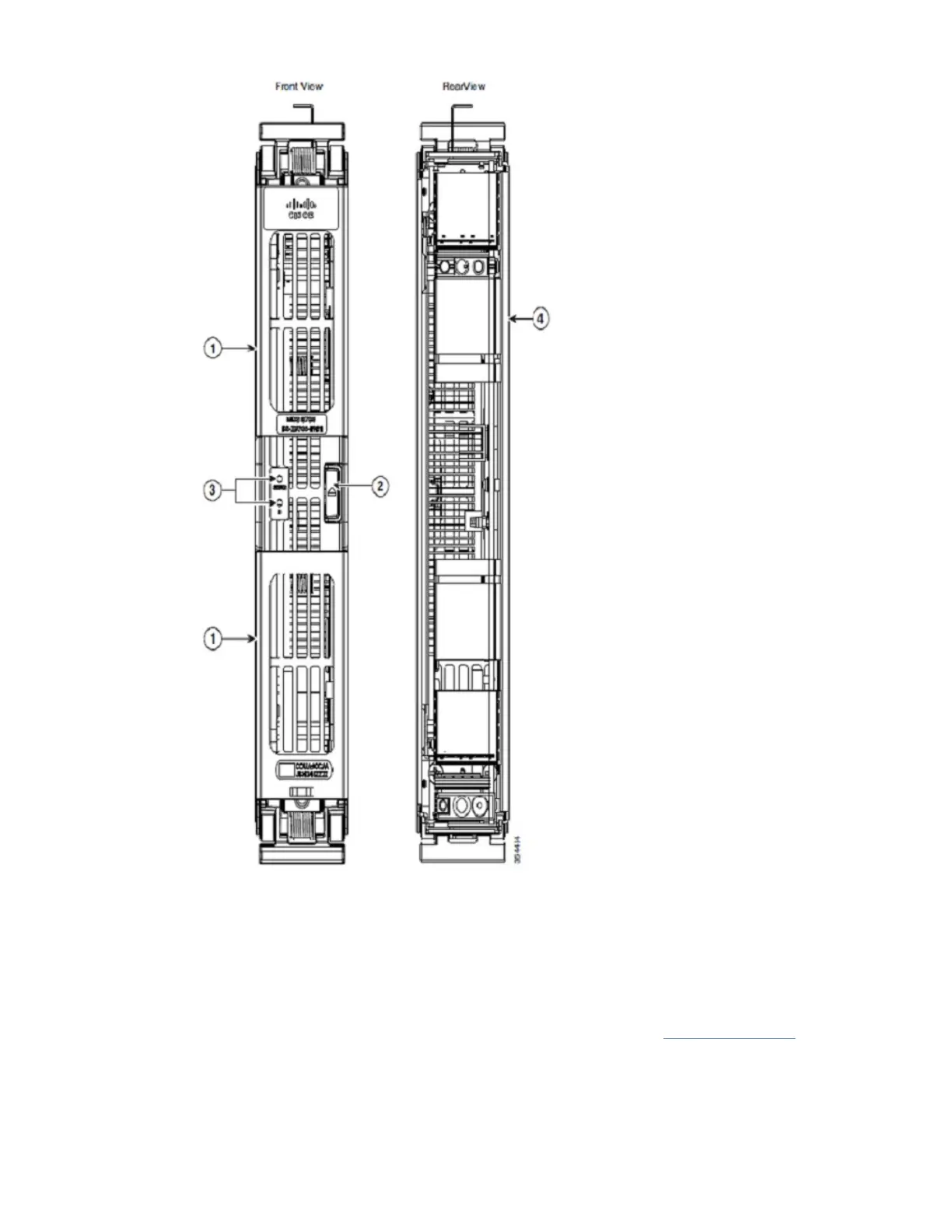

Figure 12. SAN192C-6 Crossbar Fabric Module
1. Locking lever
2. Unlocking button
3. Crossbar fabric switching module LEDs
4. Connector pins
The LEDs on the crossbar fabric modules indicate the status of the modules. Table 8 on page 31
describes the LEDs.
30IBM Storage Networking SAN192C-6, SAN384C-6 and SAN768C-6: SAN192C-6, SAN384C-6 and
SAN768C-6 Installation, Service, and User Guide
