Chapter 3. Graphical user interface overview 99

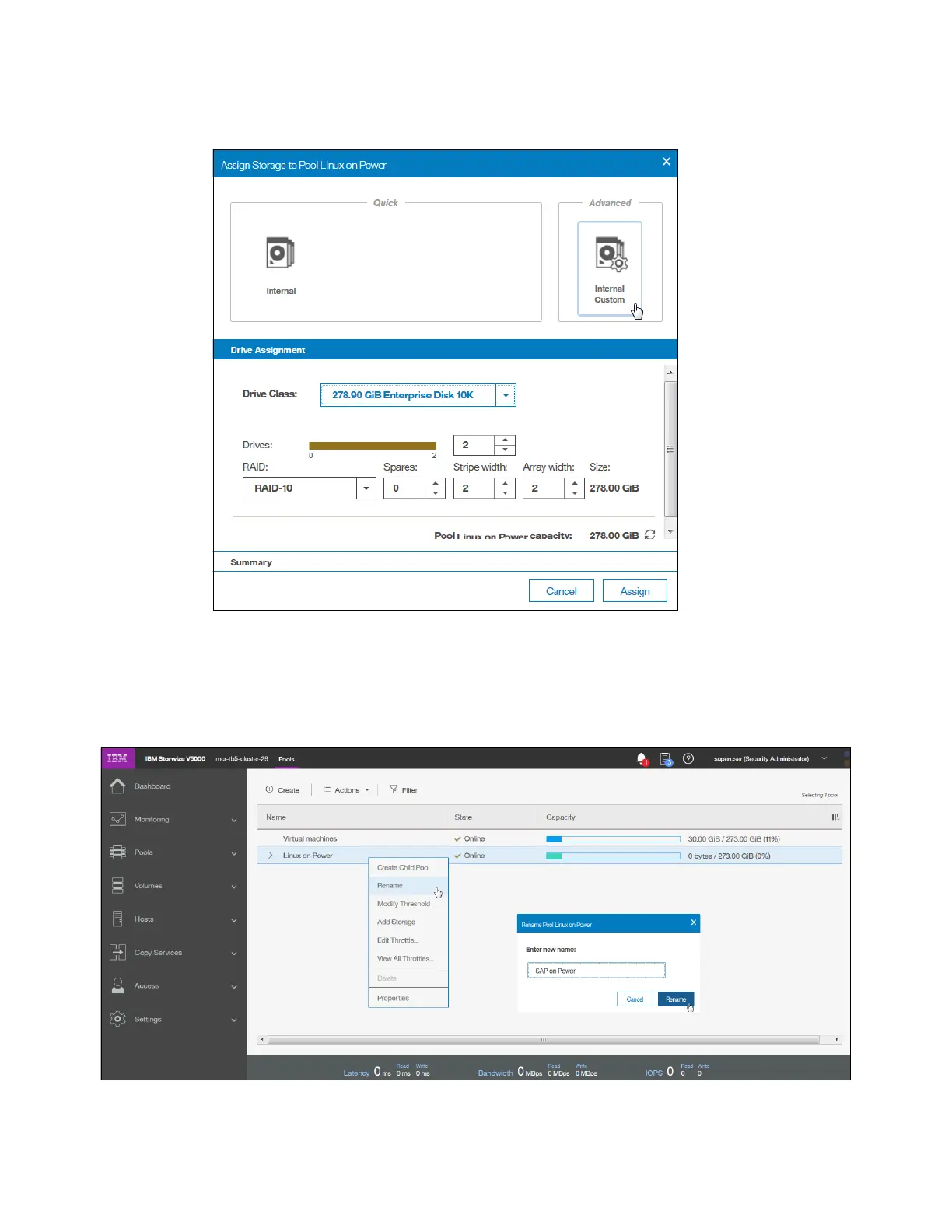

Figure 3-37 shows you the window if you selected the Internal Custom storage panel.

Figure 3-37 Internal Custom storage selection

You can choose from the available drive classes (depending on the installed drives) and RAID

sets.

How to rename the pool is shown in Figure 3-38.

Figure 3-38 Renaming the pool
