Chapter 4. Storage pools 153

Properties

Clicking Properties in the Actions menu or double-clicking the drive provides the vital product

data (VPD) and the configuration information, as shown in Figure 4-14. The Show Details

option in the bottom-left of the Properties panel was selected to show more information.

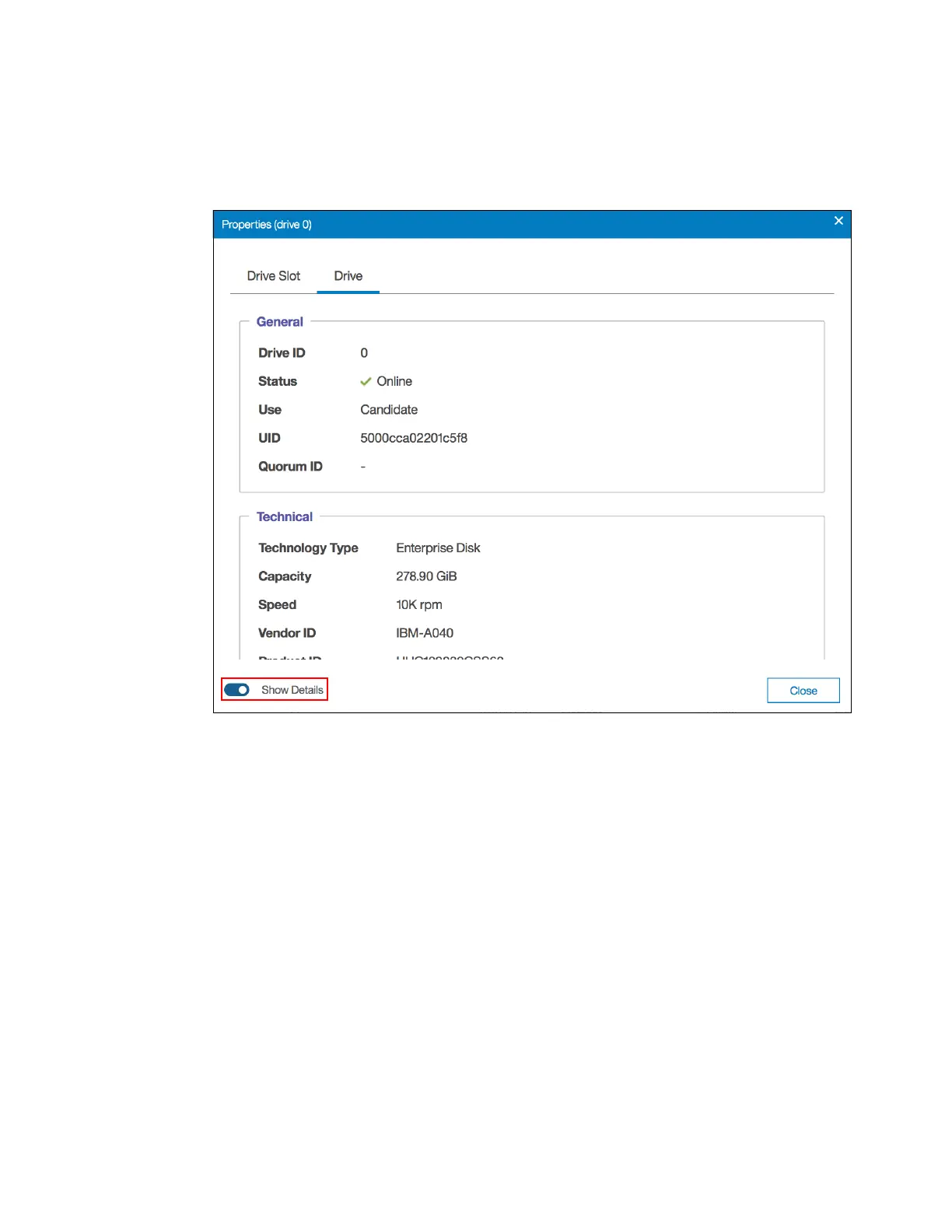

Figure 4-14 Detailed internal drive properties
