Chapter 5. Host configuration 241

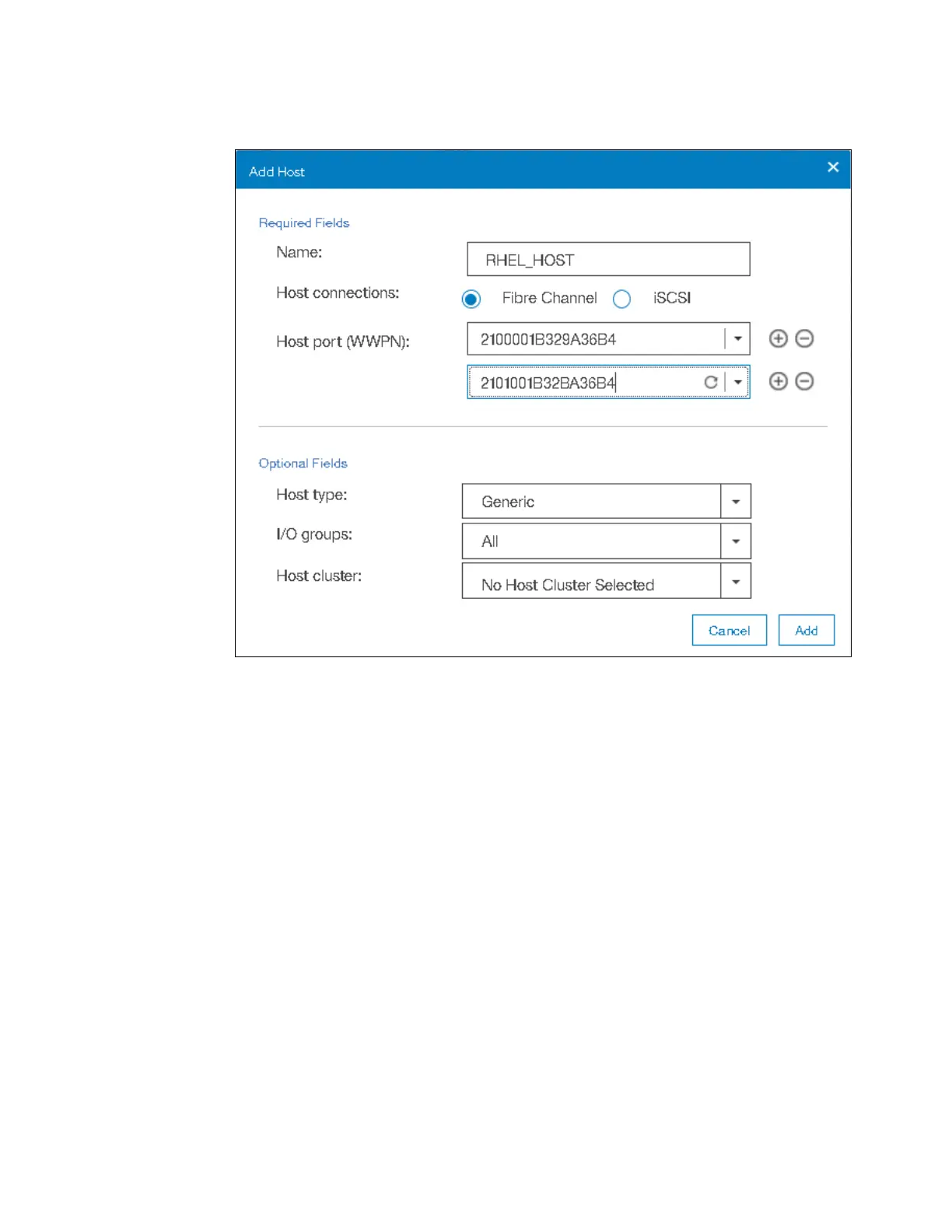

5. Add all ports that belong to the host (Figure 5-44).

Figure 5-44 Add all WWPNs
