242 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

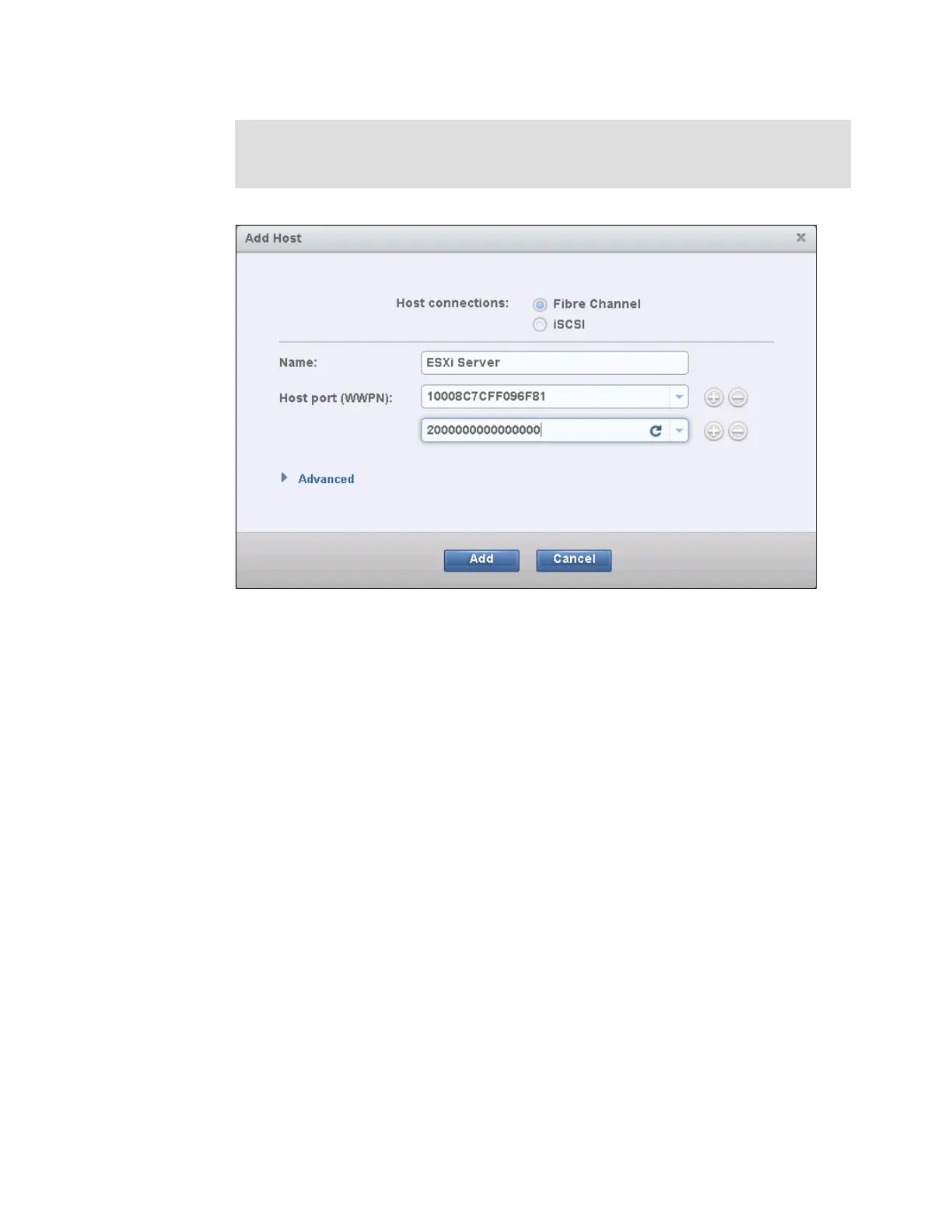

Figure 5-45 Manually added WWPN

Creating offline hosts: If you want to create hosts that are offline or not connected

currently, you can enter the WWPNs manually. Type them into the Host port (WWPN)

field and add them to the list. See Figure 5-45.
