Chapter 6. Volume configuration 331

6. You can verify the host mapping by clicking on Hosts from the main panel and selecting

Hosts, as shown in Figure 6-48.

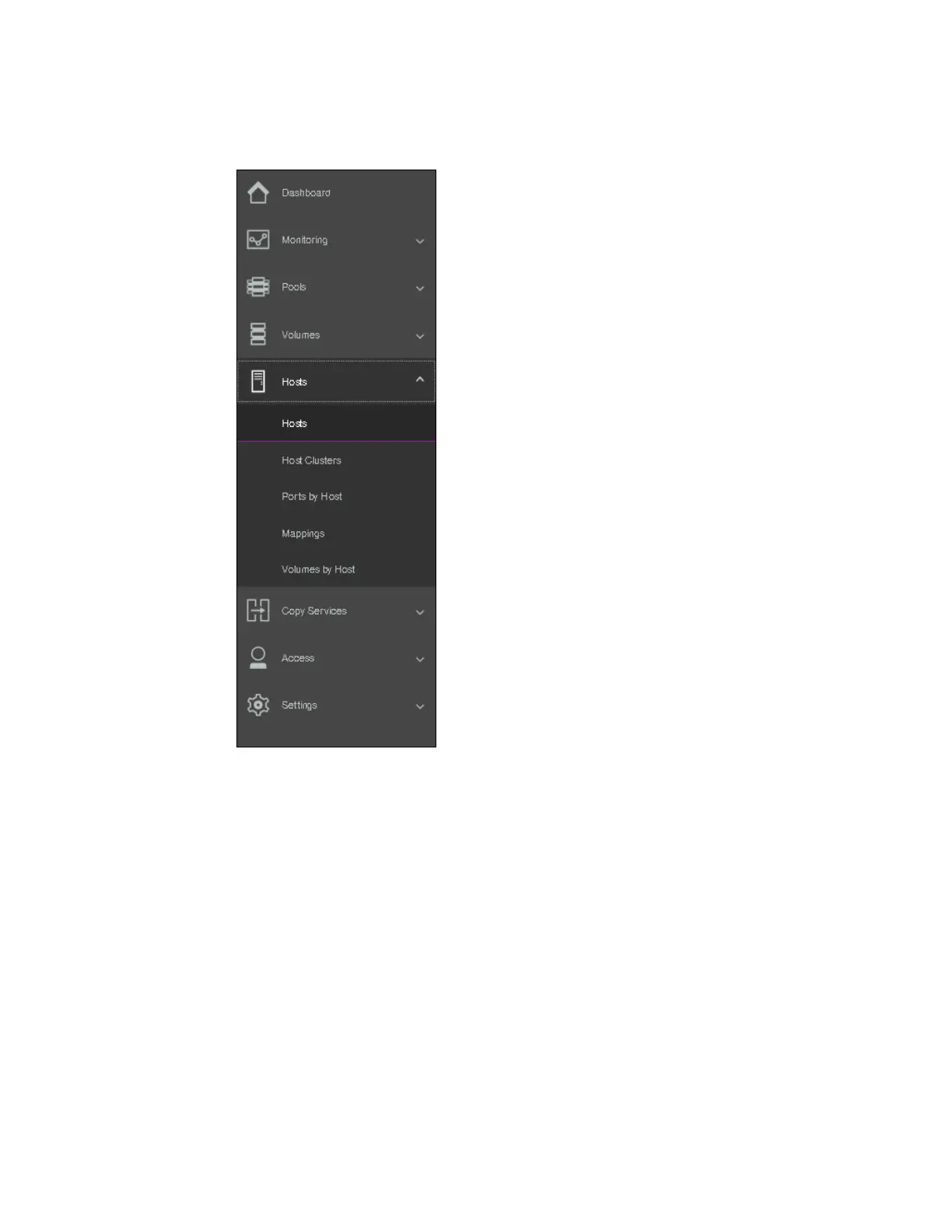

Figure 6-48 Hosts from main panel
