Chapter 6. Volume configuration 345

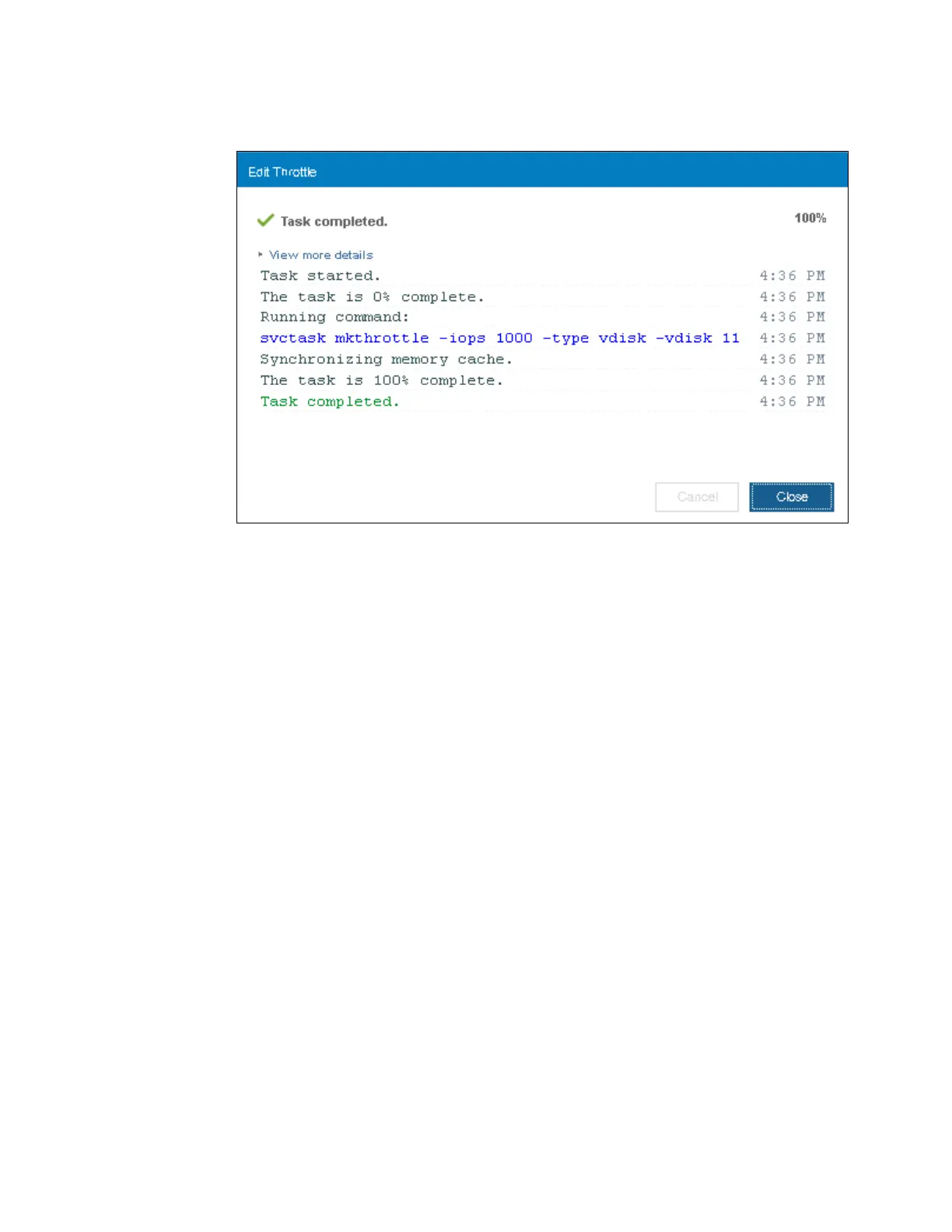

3. Click Create and you will get a task completed window as shown in Figure 6-67.

Figure 6-67 Volume throttle completed
