398 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

3. A window opens with a drop-down for you to choose the desired WWPN to be added, as

shown in Figure 8-32.

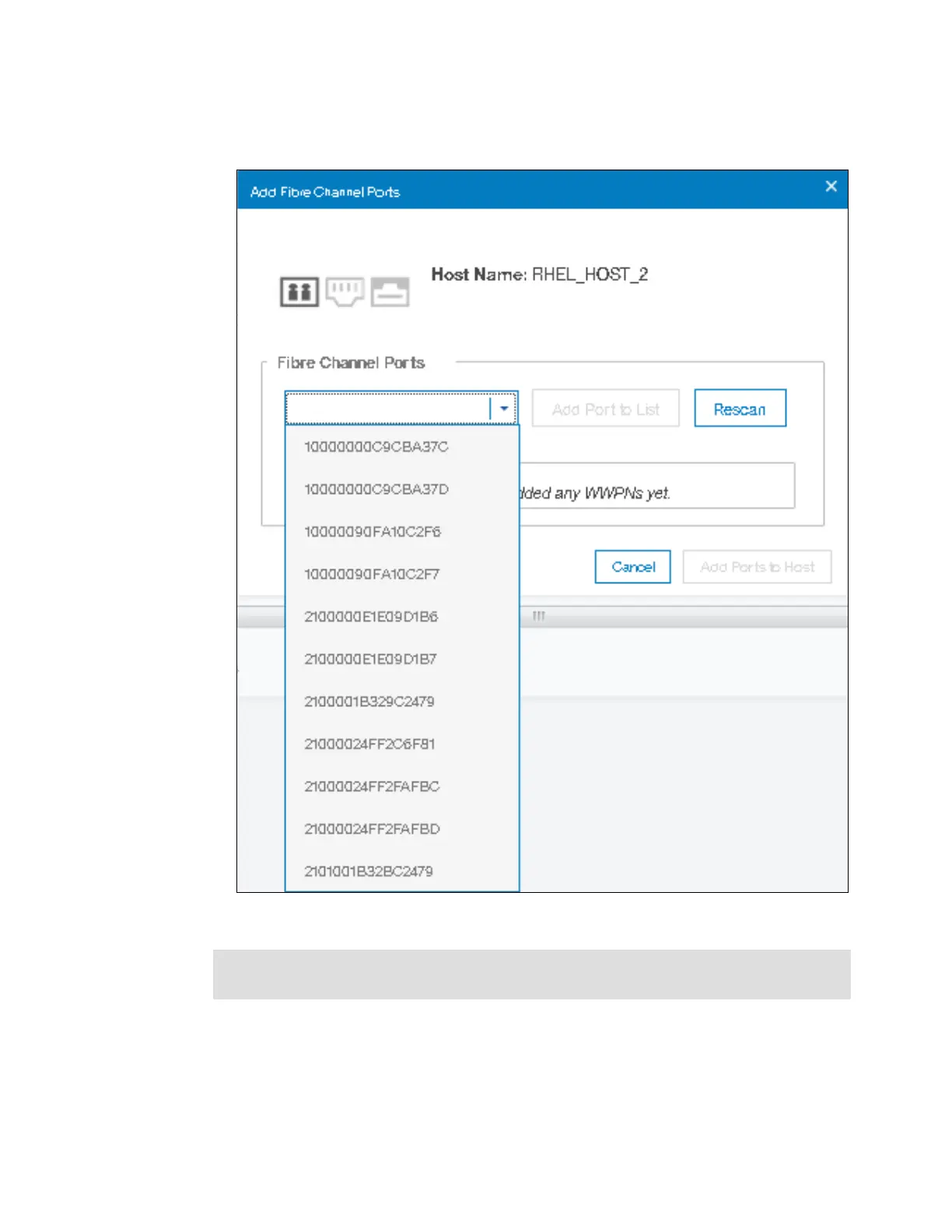

Figure 8-32 Drop-down of WWPNs

Note: If the WWPN does not show in the drop-down list, click Rescan and try again. If the

port does not show up even after the rescanning, then check the zoning.
