418 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

To duplicate a volume, complete the following steps:

1. Select Duplicate from the Actions menu (Figure 8-54).

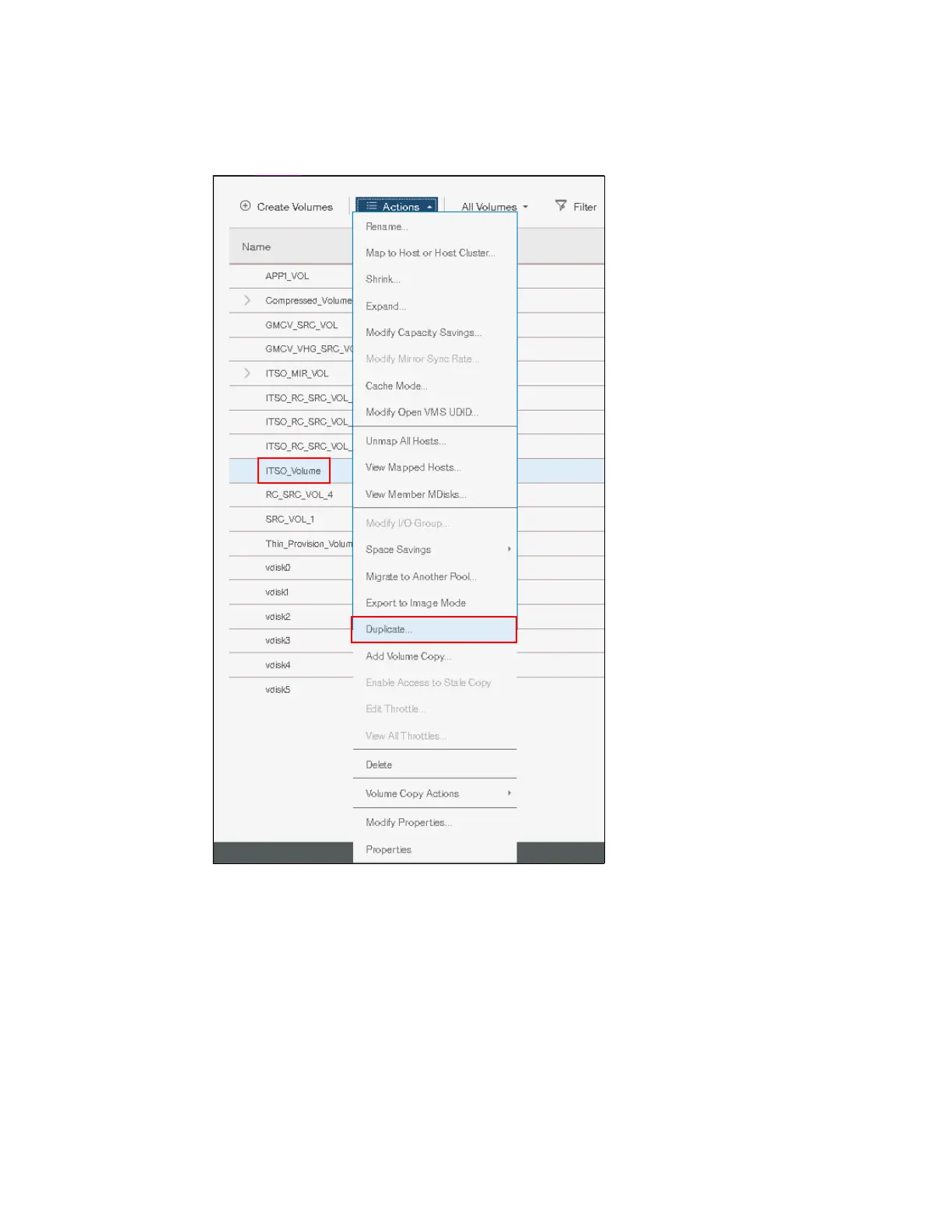

Figure 8-54 Duplicate volume option
