456 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

9. Select the pool to which the storage was added. Select Properties from the Actions Menu

and click View more details in the Properties panel. Although the Easy Tier status of a

single-tiered pool is kept as Balanced as shown in Figure 9-15, the pool will not benefit

from the Storage Pool Balancing feature with a single MDisk.

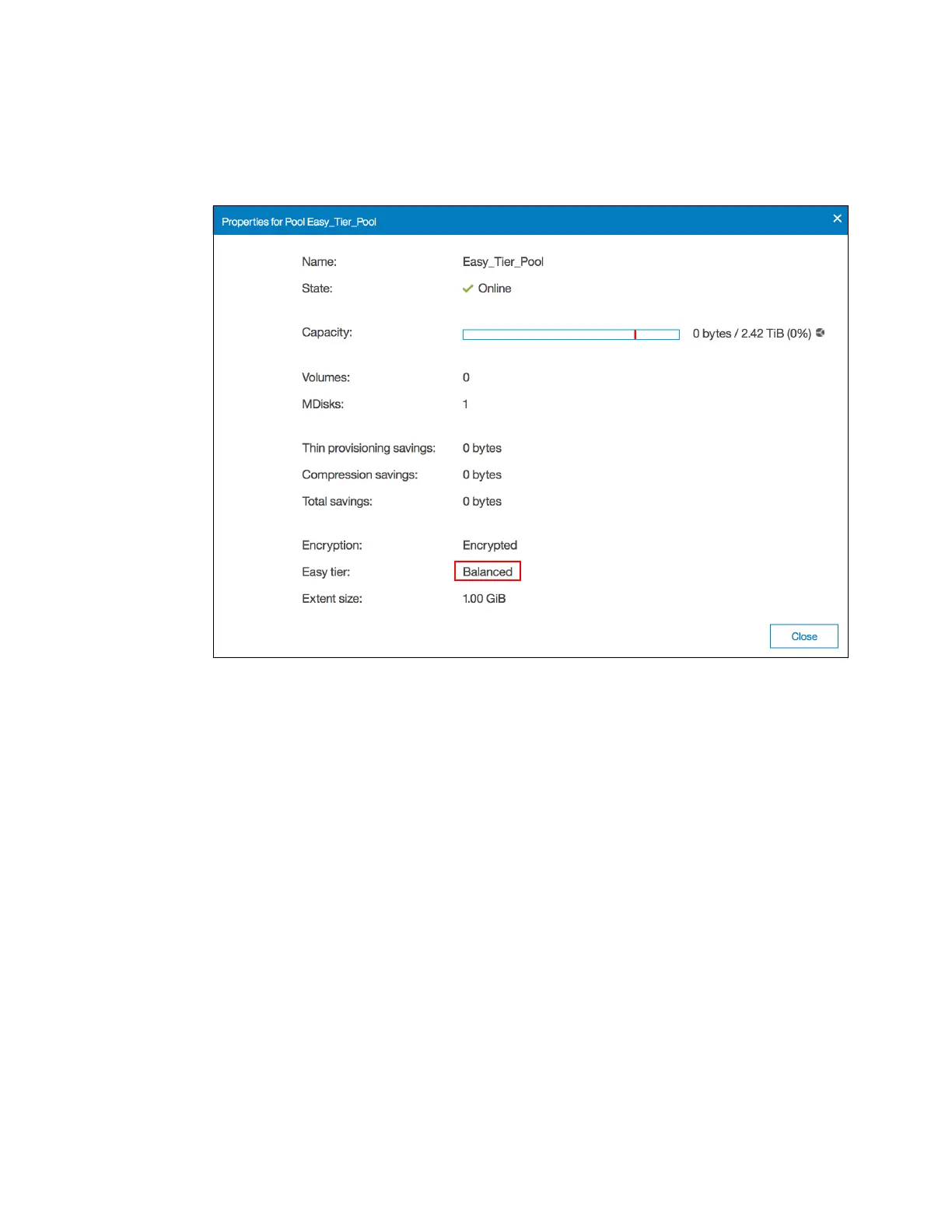

Figure 9-15 Balanced easy tier status on Properties panel
