596 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
4. In the Create Partnership window, indicate the partnership type, either Fibre Channel or
IP as shown in Figure 10-94.

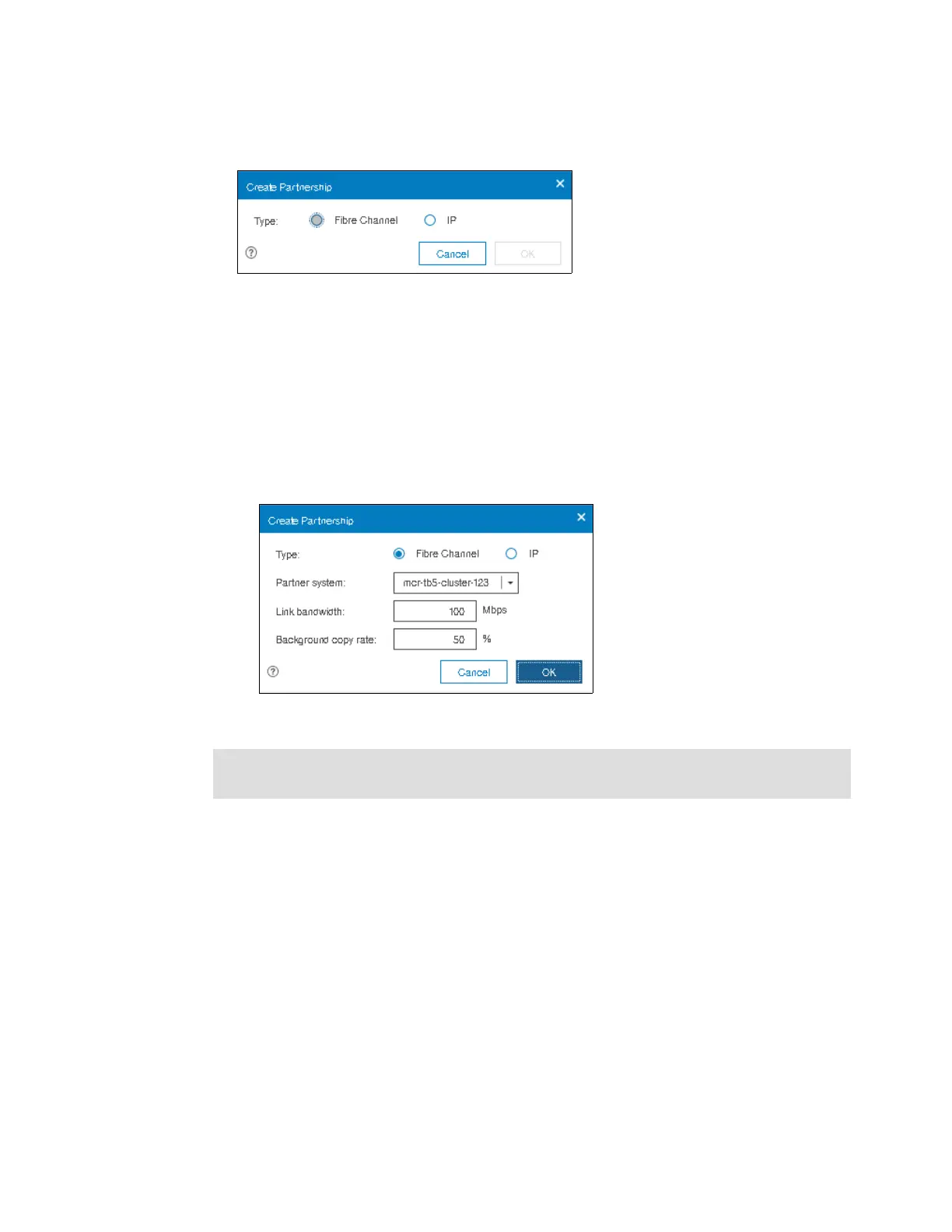

Figure 10-94 Partnership type
5. For Fibre Channel partnership, select an available partner system from the drop-down list.
If no candidate is available, the following error message is displayed:
This system does not have any candidates.
a. Enter a link bandwidth in megabits per second (Mbps) that is used by the background
copy process between the systems in the partnership.
b. Enter the background copy rate.
c. Click OK to confirm the partnership relationship as shown in Figure 10-95.
Figure 10-95 Create fibre channel partnership
6. You will get a confirmation window as shown in Figure 10-96 on page 597.
Note: If you choose IP partnership, you must provide the IP address of the partner system
and the partner system’s CHAP key.
