Appendix A. CLI setup and SAN Boot 813

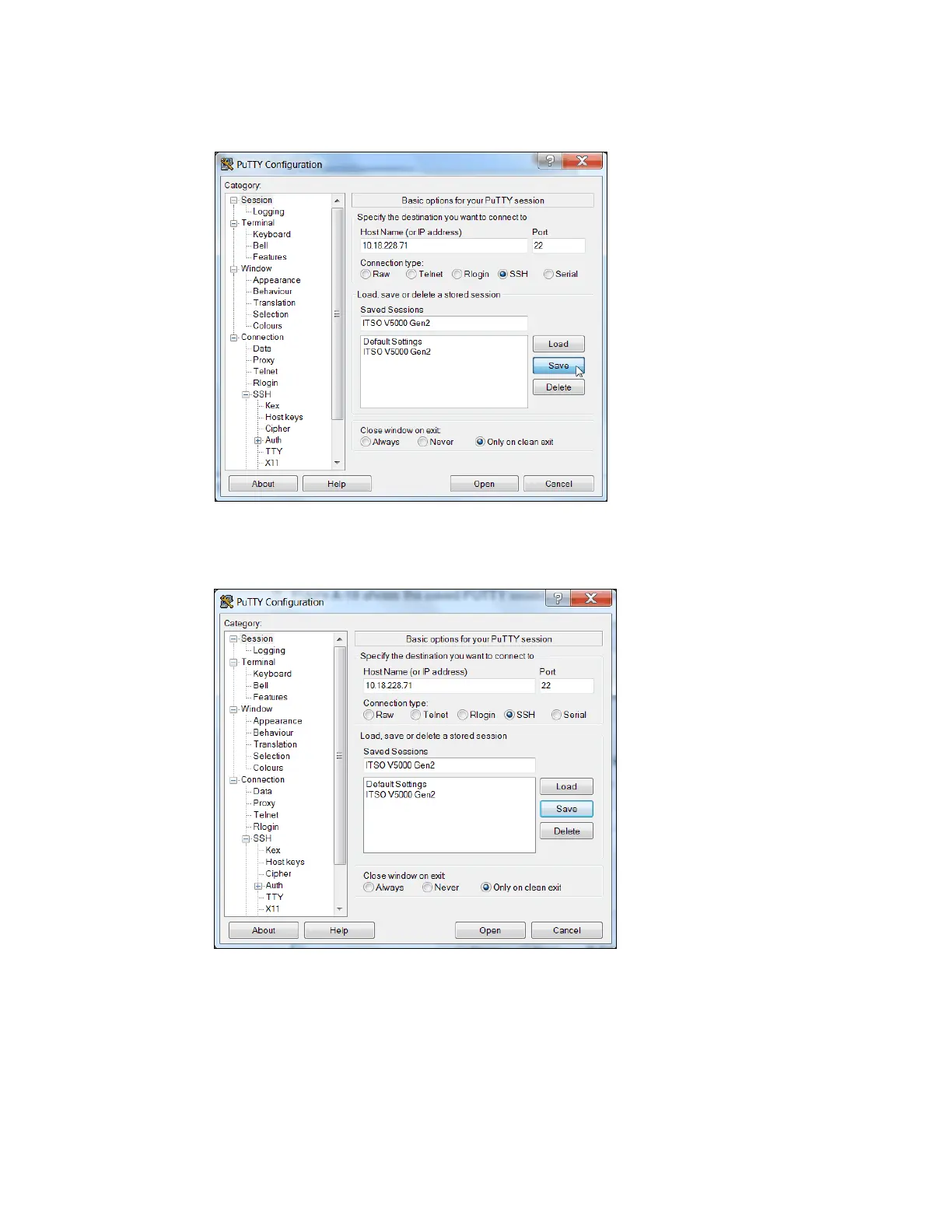

6. Click Save to save the new session (Figure A-17).

Figure A-17 Save the new session

7. Figure A-18 shows the saved PUTTY session. Select the new session and click Open.

Figure A-18 Saved PUTTY session
