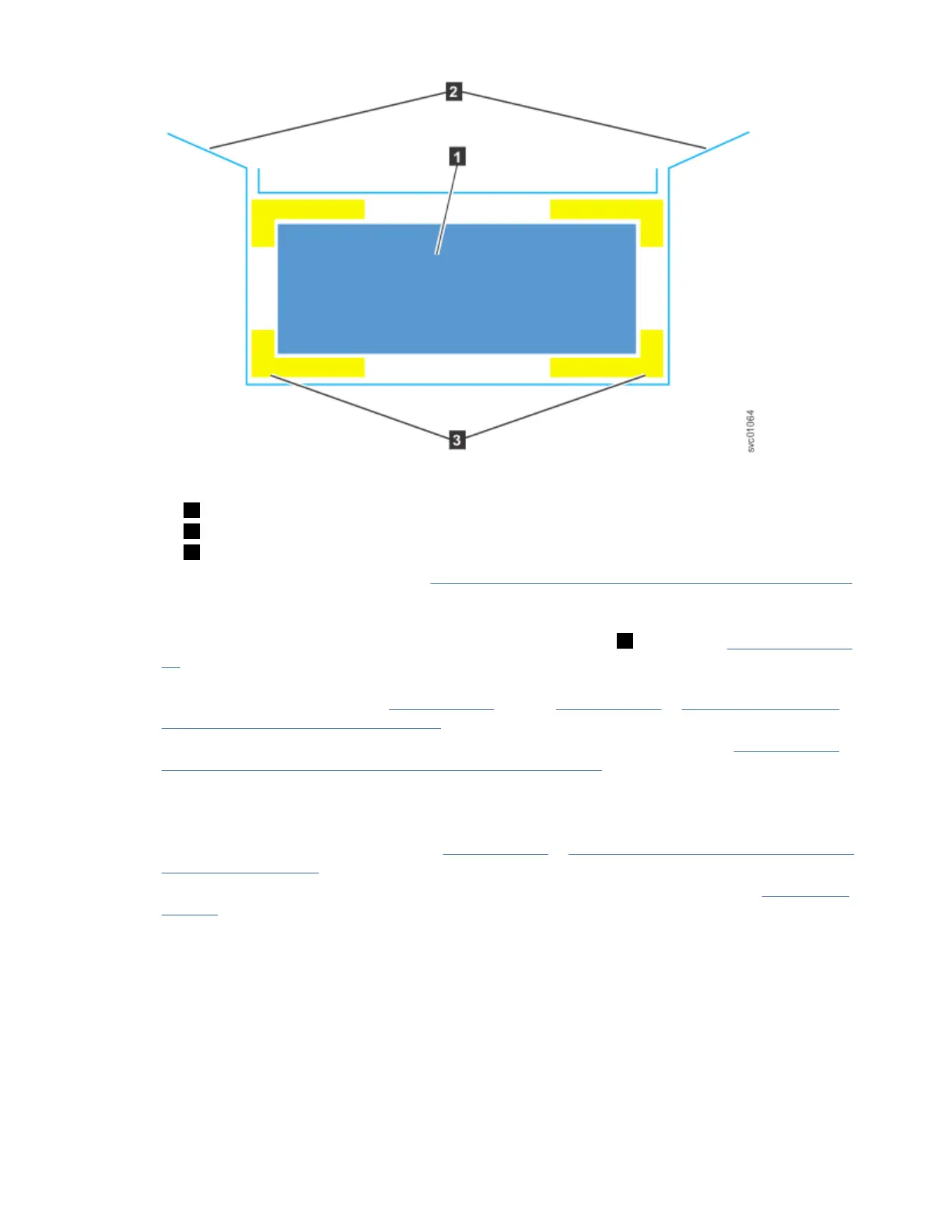

Figure 26. Packaging materials
1 Enclosure
2 Top of shipping box, folded back.
3 Foam protectors
4. Remove the top cover, as described in “Removing the top cover: 2077-92F, 2077-A9F ” on page 38.
5. With two or more persons, push the expansion enclosure sideways onto an adjacent flat bed lift.
Keep the remaining foam block protectors attached to the enclosure.
6. Remove the support rail kit from the box in which it was shipped ( 1 , as shown in Figure 25 on page
36).
7. Separate the inner section of the support rails and attach them to each side of the expansion
enclosure, as described in steps “3” on page 40 through “5” on page 41 in “Installing the support
rails: 2077-92F, 2077-A9F ” on page 39.
8. Attach the remaining sections of the support rails to the rack, as described in step “6” on page 41 in
“Installing the support rails: 2077-92F, 2077-A9F ” on page 39.
9. Move the mechanical lift to the front of the rack. Align the inner section of the rails with the mid
section of the rails that are extending from the rack.
10. On each side, push the inner section and middle section of the rails together until they click and will
no longer separate, as described in step “1” on page 50 in “Installing an optional 5U SAS expansion
enclosure” on page 49.
11. Remove the 4U and 1U fascia from the boxes in which they were shipped, as shown in Figure 27 on
page 38.
Chapter 2. Installing the system hardware
37
