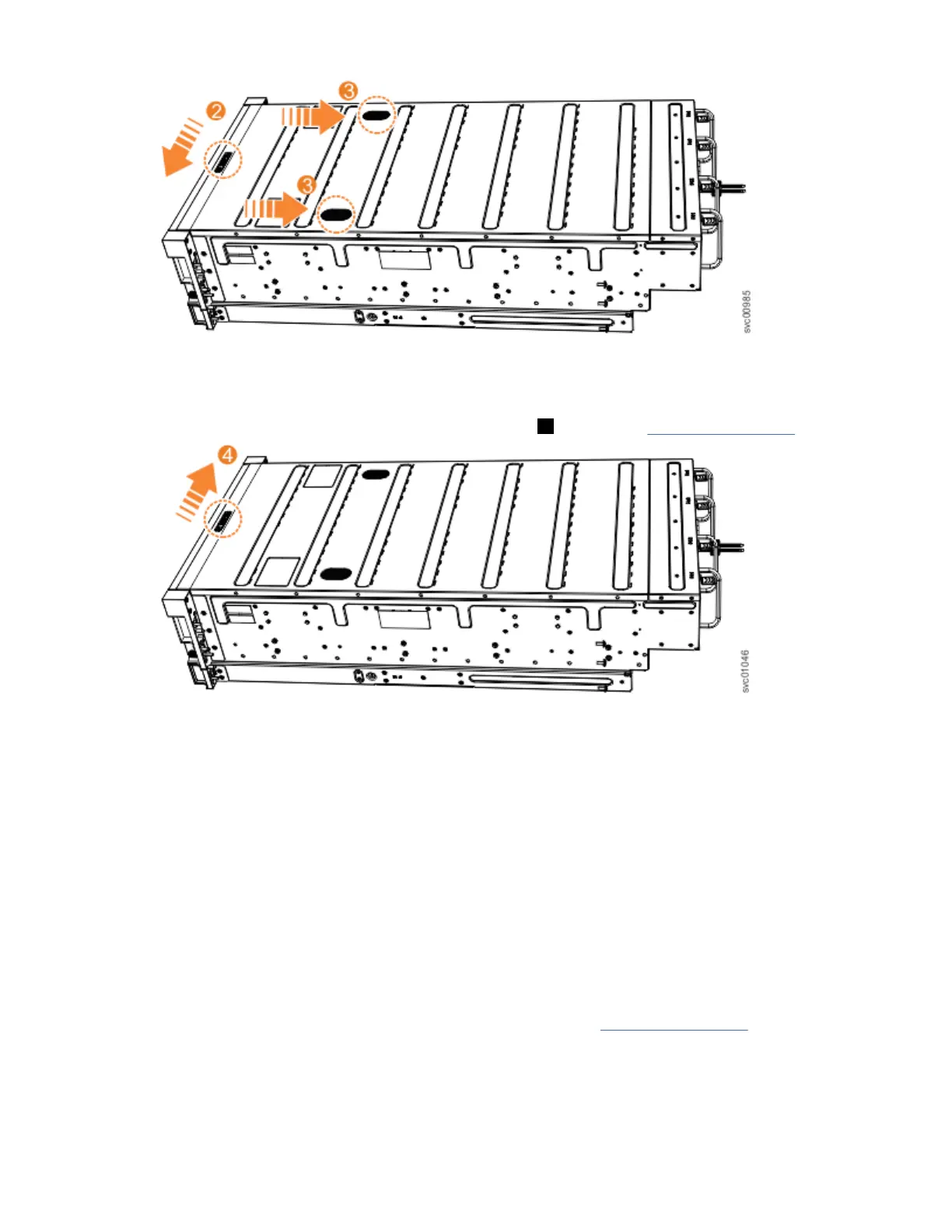

Unpacking and installing the enclosure: 2076-92F
Before you unpack and install the 2076-92F expansion enclosure, ensure that you review and follow the
installation checklist and safety notices.
Before you begin
CAUTION:
The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a
lifting device, or both to safely lift this part or unit. (C011)
CAUTION: To avoid personal injury, before lifting this unit, remove all appropriate subassemblies
per instructions to reduce the system weight. (C012)
Important: Before you unpack, move, install, or service the 2076-92F expansion enclosure and its parts,
always complete the following tasks:
⢠Read and follow the safety notices and instructions, as described in âSafety notices and considerations:
2076-92F â on page 29.
⢠Read and follow the guidelines that are described in âWeight considerations: 5U SAS expansion
enclosureâ on page 34.
⢠Ensure that a suitably rated mechanical lift is available to support the weight of the expansion enclosure
as it inserted into the rack for installation.
About this task
The 2076-92F expansion enclosure and most parts are shipped together in one large box. A tray on the
top of the enclosure contains the front fascia (1U and 4U pieces), the cable management arm (CMA), and
the slide rail kit; you must install these parts. Figure 38 on page 43 shows how the enclosure is
packaged for shipment.
Figure 38. Tray containing expansion enclosure parts
1 Slide rail kit
Chapter 2. Installing the system hardware
43
