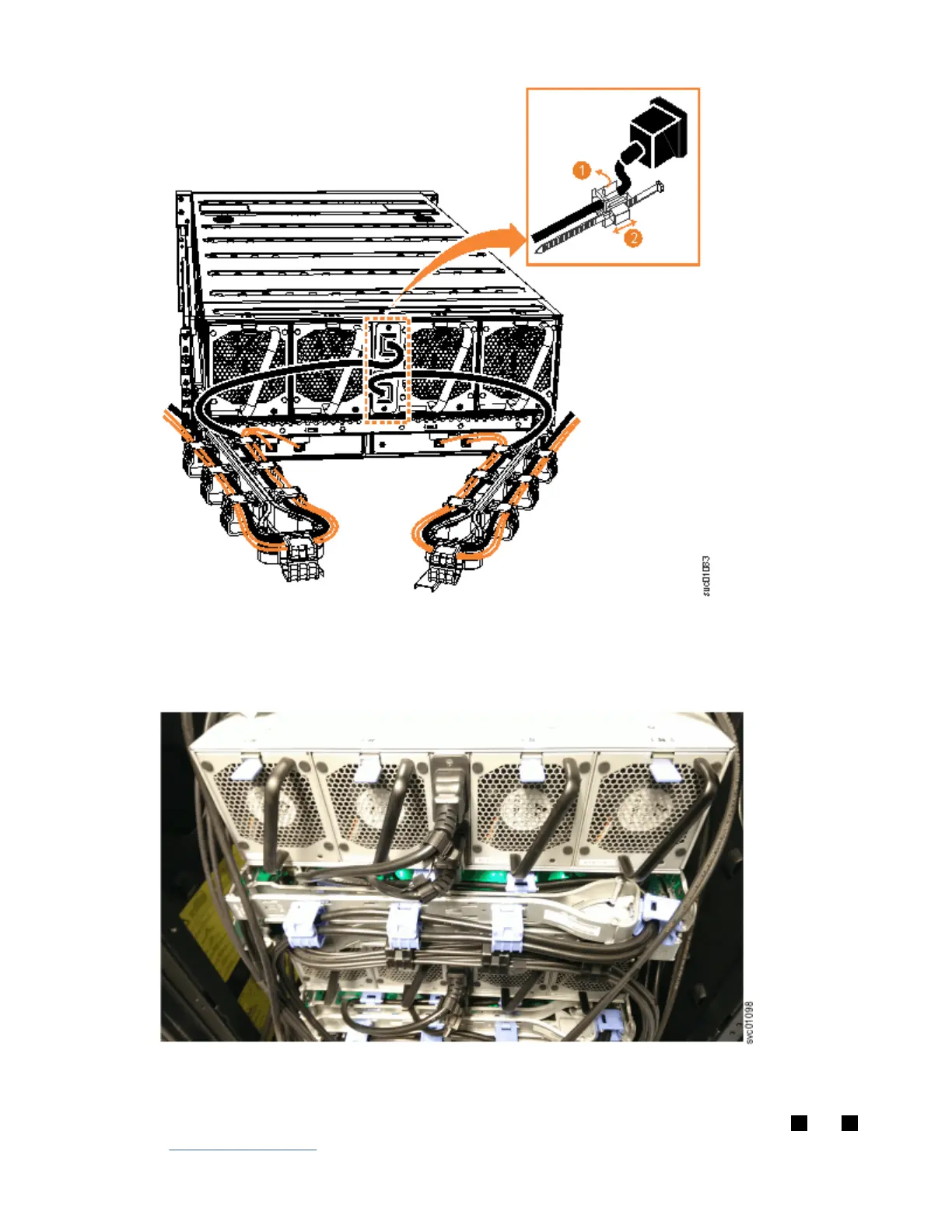

Figure 54. Connectors for the upper cable management arm
1 Inner connector on the upper CMA
2 Connector base on inner rail member
3 Outer connector on the upper CMA
4 Connector base on outer rail member
5 Support rail connector on the upper CMA
6 Connector base on outer rail member
1. Press the latch on the connector base on the upper CMA assembly ( 5 in Figure 54 on page 55).
2. Pull the connector to remove it from the connector base on the right support rail ( 6 in Figure 54 on
page 55).
3. Press the latch on the outer connector of the upper CMA assembly ( 3 in Figure 54 on page 55).
4. Remove the outer connector from the inner member of the left support rail ( 4 in Figure 54 on page
55).
5. Remove the inner connector of the upper CMA assembly ( 1 ) from the inner member of the left
support rail ( 2 ), as shown in Figure 54 on page 55.
Remove the lower CMA assembly
Note: The procedure for removing the lower CMA assembly is the same as the procedure to remove the
upper CMA assembly. However, the connector locations are reversed. For example, the connector base of
the upper CMA ( 5 in Figure 54 on page 55) connects to the right rail. The connector base of the lower
CMA ( 11 in Figure 55 on page 56) attaches to the left rail.
Chapter 2. Installing the system hardware
55
