Slots
Fixed storage slots are represented by the third digit of the library location
coordinate. Slots are numbered from top to bottom within each column starting
with 1 at the top of the column.
Drives
Drives are addressed by module and drive bay within a module. The drive bays
within a module are numbered from top to bottom. A one-based numbering
system is used. The top drive bay is drive bay 1. A full address of a drive is of the
form [Module, Drive Bay], examples: [0,1], [-1,2].
Power Supplies
Power supplies are addressed as [Module, PS#], where PS# is 1 for the left supply
and 2 for the right.
a66ug045
0
0,1
0,2
-1, 1
-1, 2
-1, 3
-1, 4
-1

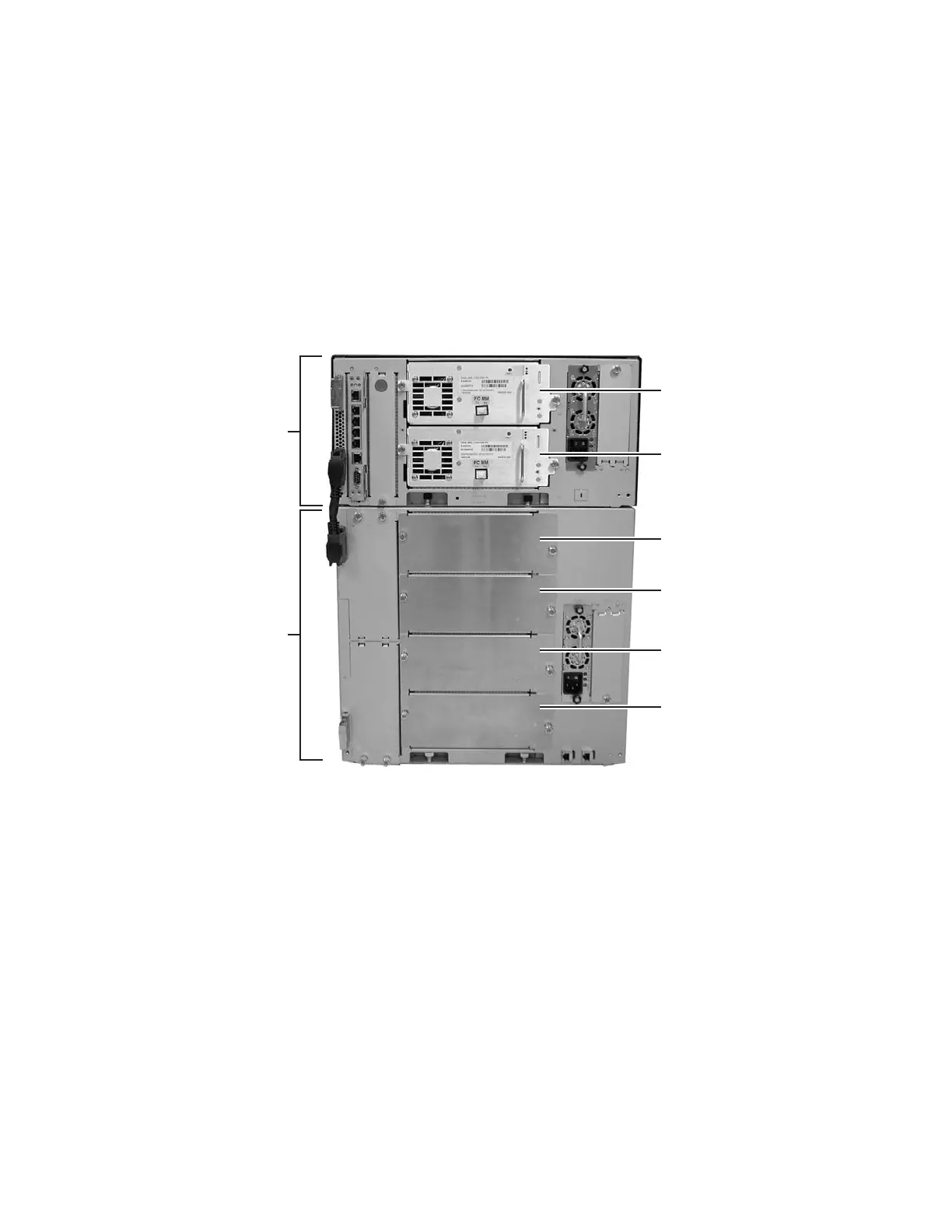

Figure 1-7. Drive location coordinates
Chapter 1. Product Description 1-13
