5. Install one end of the power cord (
5
in Figure 3-16 on page 3-18) in the
receptacle in a power supply in your library, then connect the other end of the
cord to your power source. Repeat this for every power supply in your library.
6. Continue with “Step 5: Powering ON the Library” on page 3-22.
Cabling a 14U Library Containing Fibre Drives
To cable a 14U library (control module + 9U expansion module) with fibre drives,
complete the following steps:
1
Module communication
terminator
5
Power cord (upper module)
2
Module-to-module
communication cable
6
Power cord (lower module)
3
Ethernet cable (customer
supplied)
7
Fibre drive-to-network cables
4
Module communication
terminator
1. Install a module communication terminator in the upper receptacle of the
upper module of your library (
4
in Figure 3-17).
2. Install one end of the module-to-module communication cable (
2
in
Figure 3-17) in the lower receptacle of the upper module of your library, then
install the other end in the upper receptacle of the lower module of your
library.
1
2
3
4
5
6
7
a66ug021

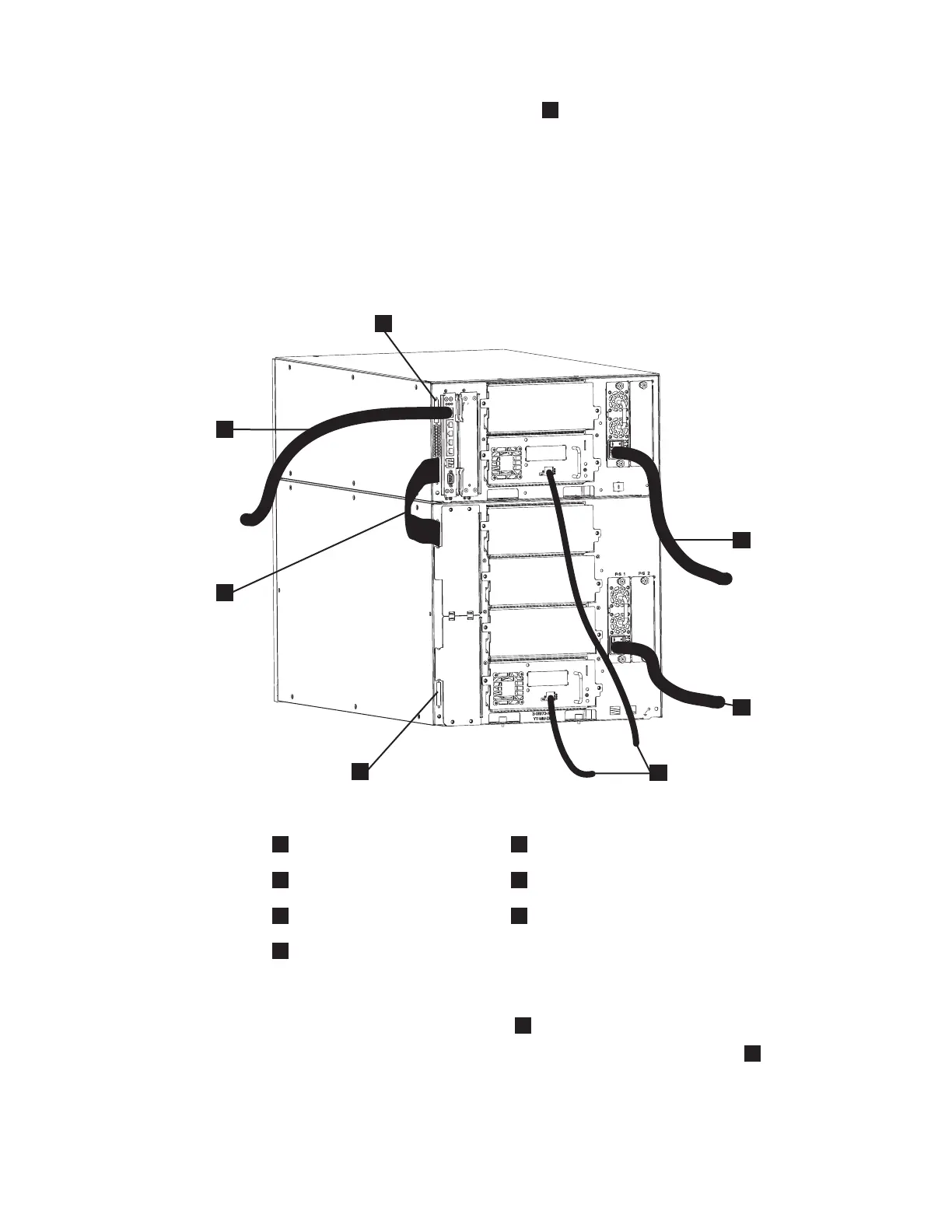

Figure 3-17. Cabling of a 14U library containing multiple fibre drives
Chapter 3. Installing the Library 3-19
