10. Connect cables to the backplane.
v Type1-SATA
a. Connect the LED signal, SATA signal and power cables to the backplane.
b. Insert the hot-swap backplane onto the rear hard disk drive cage (see
“Replacing the hot-swap backplane on the rear hard disk drive cage” on
page 236
c. Connect the other end of the LED signal cable to the hot-swap hard disk
drive backplane in the server.

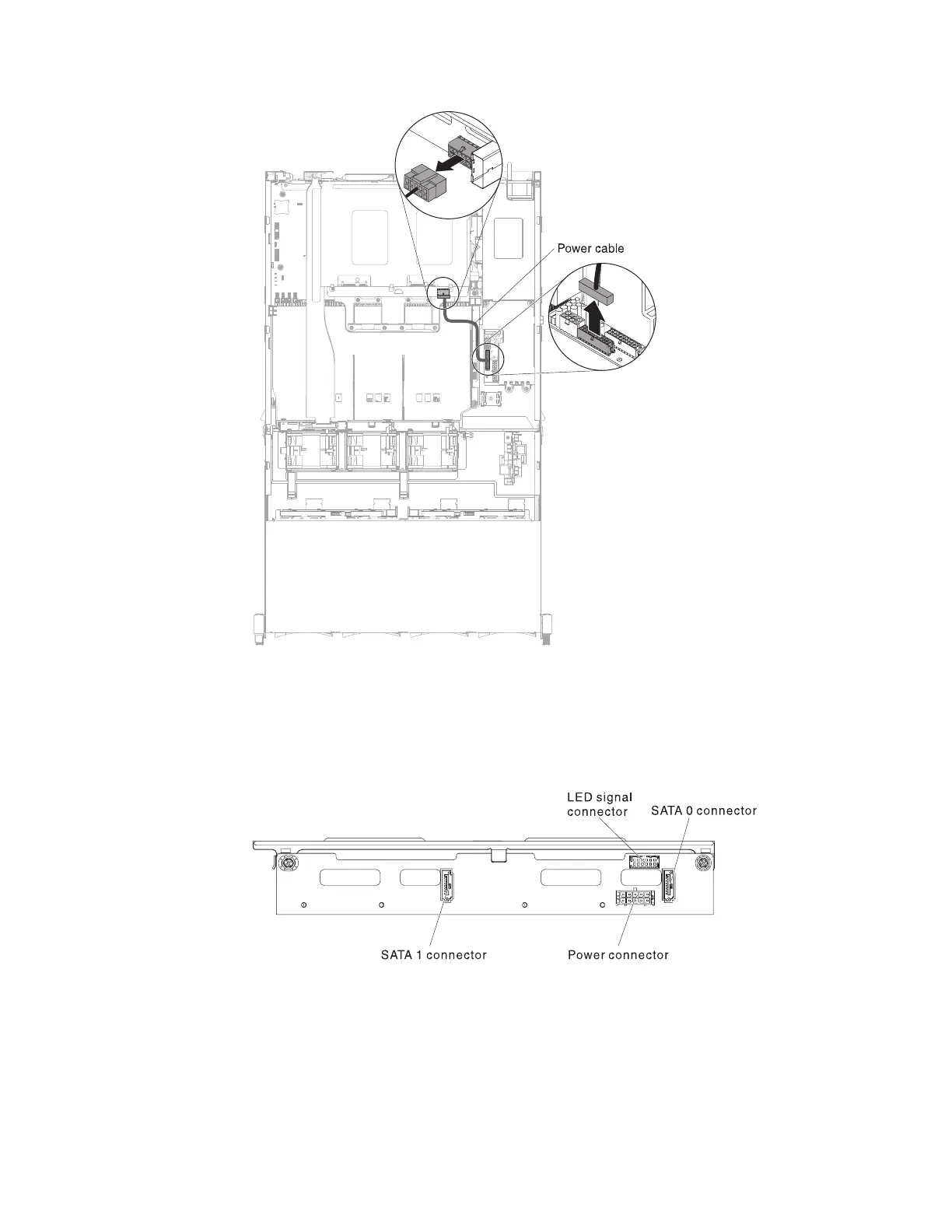

Figure 85. Cable routing
Figure 86. Type 1
174 System x3650 M4 BD Type 5466: Installation and Service Guide
