IBM System x3650 M4 BD Type 5466 User Manual

4. Reconnect the cables between the upper power supply card and lower
power-supply paddle card.
5. Align the screw holes on the safety cover (240VA cover) with the screw holes
on the chassis; then install the screws to secure the safety cover.
6. Reconnect any cables that were removed from the lower power-supply paddle
card.
7. Reconnect the lower power-supply paddle card cables to the system board.
You can refer to the internal cable routing section “Internal cable routing” on
page 164 for further details.

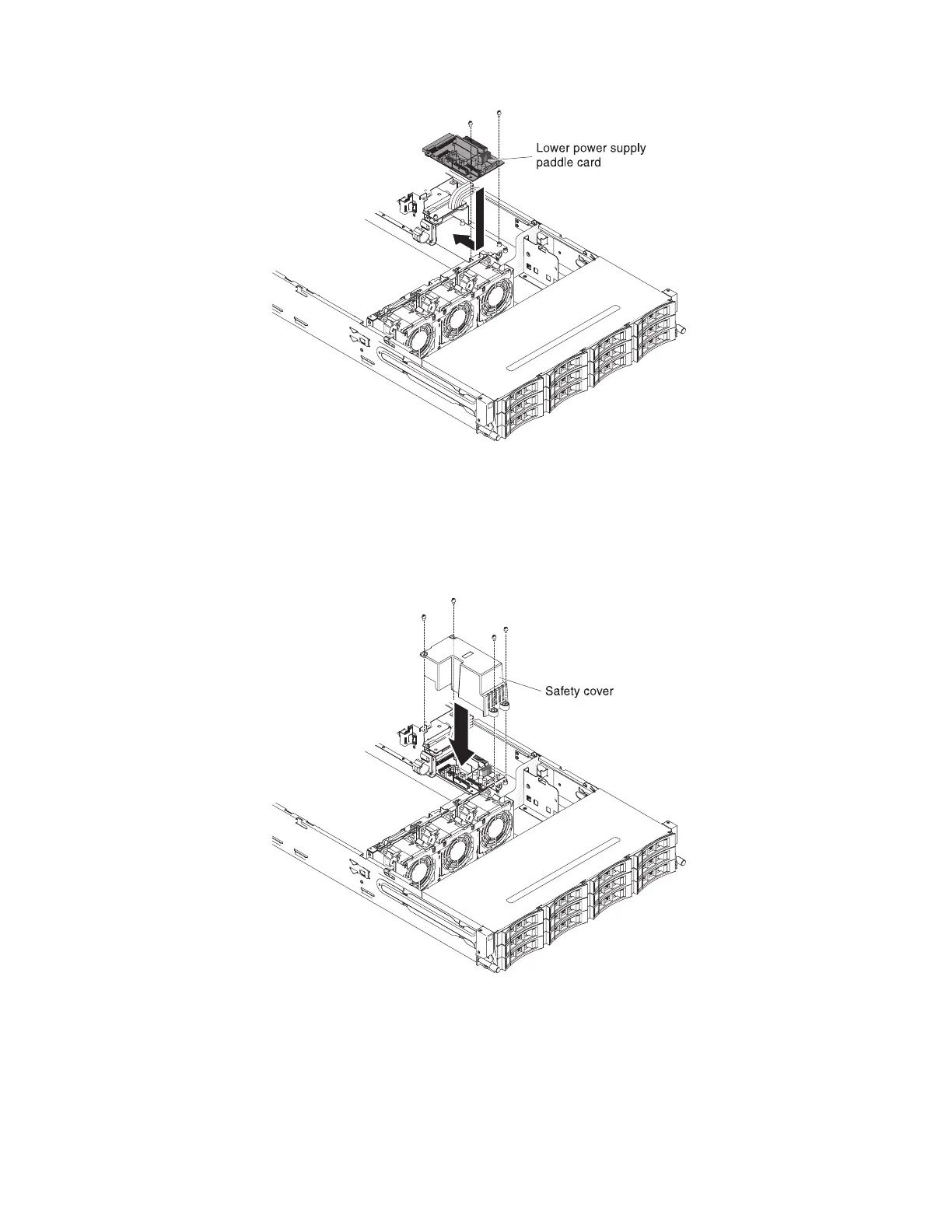

Figure 140. Lower power supply card installation
Figure 141. Screws installation
Chapter 6. Removing and replacing components 227

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
