8. Install the air baffle (see “Replacing the air baffle” on page 262).
9. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly”
on page 208.
10. Rotate the hot-swap rear hard disk drive cage down (see “Rotating the
hot-swap rear hard disk drive cage down” on page 169.
11. Install the server top cover (see “Replacing the server top cover” on page 260).
12. Install the power supplies.
13. Reconnect the external cables; then, reconnect the power cords and turn on
the peripheral devices and the server.

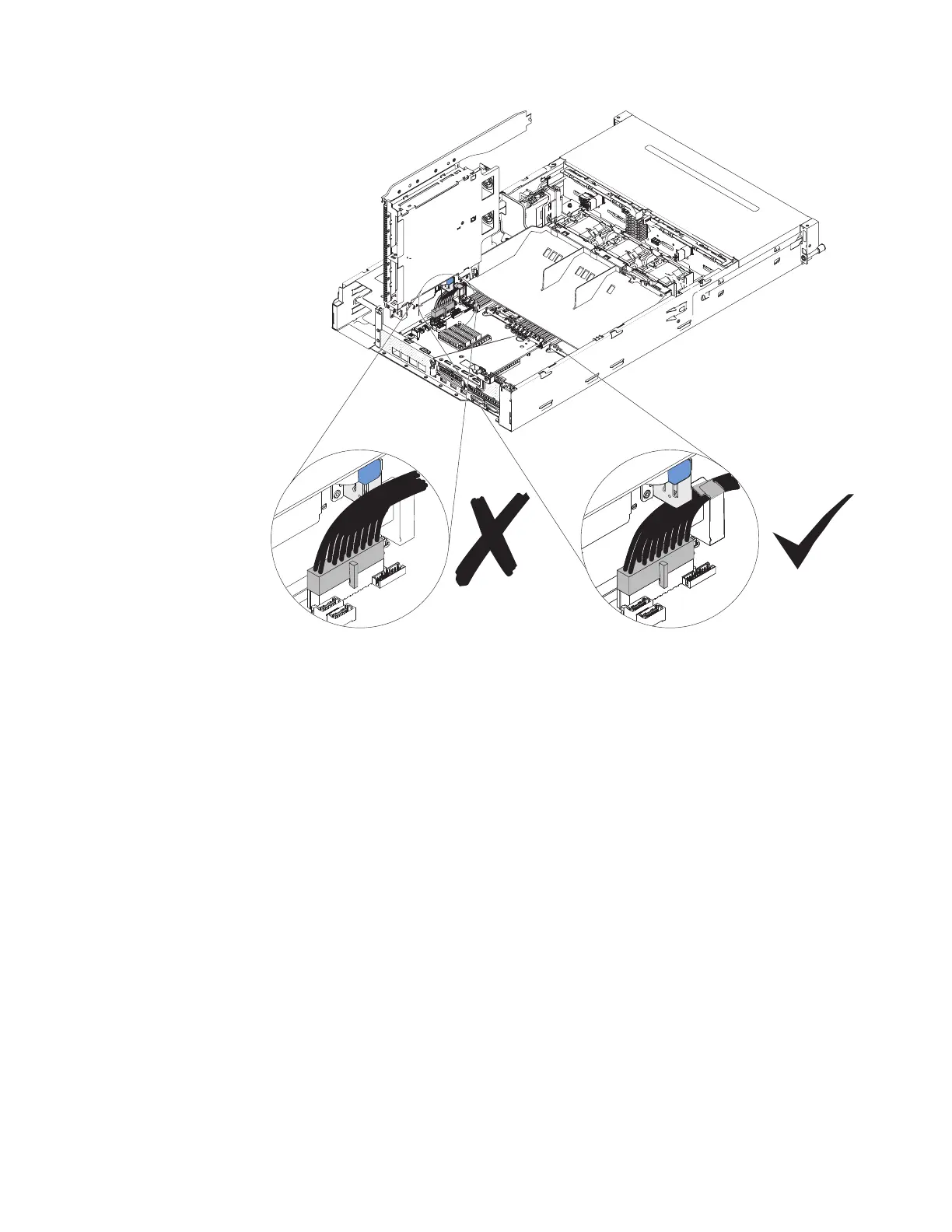

Figure 142. Cable routing
Chapter 6. Removing and replacing components 229
